Community MX8-B

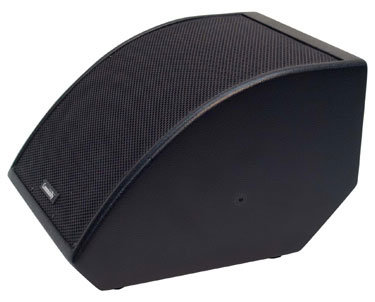

8" 2-Way Monitor, 150 Watts RMS, Black


Community's M-Class stage monitors allow musicians, orators and vocalists to perform with confidence.
Learn More
Our Price: $445.00
Write the first review.
Community MX8-B
In Stock
Related Products

Community's M-Class stage monitors allow musicians, orators and vocalists to perform with confidence. This unique family of versatile and low profile monitor systems serves a wide range of demanding applications such as houses of worship, scholastic and corporate auditoriums, nightclubs, and other venues that require clarity of speech, musicality and high power output. From the subtlety of the spoken word in a house of worship to energetic live performances, Community M-Class has you covered. All M-Class monitors are available in black or white paint finishes.

The ultra-low profile M-Class MX8 features stylish looks and excellent performance capabilities. Using Community’s proprietary coaxial drivers and DYNA-TECH™ driver protection system, these compact monitors provide professional performance at affordable prices. Conical waveguides eliminate the transition anomalies that occur in most square and rectangular horns, resulting in exceptionally smooth phase and frequency response curves. Their coaxial design means that all of the sound emanates from the same point source. These innovations reduce feedback, improve intelligibility, and provide uniform coverage exactly where it’s needed. The MX8 is ideal for performers who are often off-axis from their monitors as they move around the stage.

Community MX8-W Specifications:

  • Loudspeaker Type: 2-way full-range coaxial monitor (passive mode only)
  • Drivers: LF 1x 8" cone, HF 1x 1.25" exit
  • Nominal Dispersion: 115° conical
  • Operating Range: 80 Hz - 18 kHz
  • Frequency Response: 90 Hz - 16 kHz
  • Max Input Ratings: 150W continuous, 375W program
  • Sensitivity (1W/1m): 96 dB SPL
  • Maximum SPL: 117 dB SPL (continuous) / 124 dB SPL(peak)
  • Nominal Impedance: 8 ohms
  • Input Connection: (2) NL4-compatible locking connectors, (1) two-screw terminal strip
  • Dimensions: 10.4" H x 10.8" W x 14.5" D (263 x 275 x367 mm)
  • Weight: 17 lbs (8 kg)
Wall/Ceiling Yoke in Black for MX8-B Loudspeaker
Community MX-Y8B Wall/Ceiling Yoke in Black for MX8-B Loudspeaker
Community's MX-Y8 and MX-Y10 yoke brackets are designed to flush mount the M-Class series MX8 and MX10 loudspeakers in either a vertical or horizontal orientation tightly against a wall or ceiling. Corner mounting is also possible when the ...
