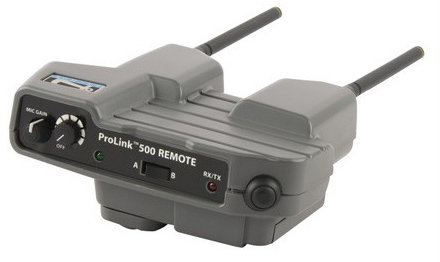

Anchor BP-500R (1,2,3) Remote Belt Pack for ProLink 500

This unit is a remote belt pack, for use with the ProLink 500 wireless intercom system.

The Anchor Audio BP-500R Remote Beltpack is for use as part of a ProLink 500 intercom system. The beltpack features a compact and portable design and offers full-duplex communication without the need for a base station. The BP-500M Master Beltpack (sold separately) can support up to 3 remote beltpacks and unlimited listen-only beltpacks for clear communication at distances up to 500 feet away. The remote beltpack has an LED indicator that flashes red when it is transmitting to the other belt packs.

The BP-500R has an A/B channel selector, a power/volume knob and a mic gain control to precisely adjust the operation to meet your needs. A push-to-talk button lets you communicate at will, while the "always on" slide switch lets you talk freely without using the PTT button. The beltpack has a 4-pin XLR headset connector for use with Anchor Audio headsets, or any headset with a dynamic microphone. The beltpack operates on a set of 3 AA rechargeable batteries and has a charging port for quick charging in the separately available gang charger.

Features

• Provides full-duplex communication without the need for a base station
• Push-to-talk button lets you communicate at will, while the "always on" slide switch lets you talk freely without using the PTT button
• Clear audio at distances up to 500' line of sight
• Batteries operate 10-12 hours on a single charge
• LED indicators: power/low battery and out-of-range
• Compact design with dual heavy-duty antennas

Specifications

• Compatibility: ProLink 500 Intercom
• RF Frequency Range: 902-928 MHz
• Modulation: FSK
• Wireless Range: Up to 500' (152.4 m) (Line of Sight)
• Antenna: 1/2-Wavelength Dipole
• Power:
  • 9VDC, 1.2ADC (3 x AA Batteries)
  • Battery Life: 10-12 hours
• Dimensions (H x W x D): 4 x 3.5" x 2" (10.2 x 8.9 x 5.1cm)
