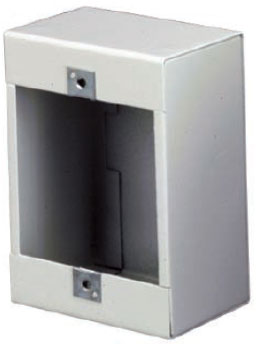

Lowell P1X Steel Surface Mount Box for 1 Gang Devices, 2.5" Deep, White

P1X Enclosures are 20-gauge steel with a white powder epoxy finish. Front flanged holes on 1 and 2-gang models conform to standard wall plate centers and hardware. Models for 3, 4, 5 and 6 gang devices fit custom plates. Rear of the box includes three or five 1/2" conduit knockouts as noted and mounting holes for installing to standard E.O. Boxes.

Model P1X: fits standard 1-gang device including Lowell’s S1 and A1 blank wall plates, MCP1-series wall plates with connectors, and LVC-series volume controls. The box is 2.875” wide. Includes 4 knockouts and 2 U-clips.

Features:

• 20-gauge steel
• 4.625”H x 2.5”D (varied widths)
• Knockouts
• White powder epoxy finish
• U-clips

Specifications:

• Size: 1 gang
• Knockout: 4 Quantity (0.5")
• Height: 4.625"
• Width: 2.875"
• Depth: 2.5"
