Product Overview
Conceived, engineered and built with precision in the United Kingdom, the VX Series represents the latest evolution of Tannoy's core philosophies in professional loudspeaker design. VX 12.2Q is an entirely new class of device that delivers high SPL, low distortion and audio coverage in a complete high performance loudspeaker cabinet. It provides a higher impact solution for medium-to-large scale sound reinforcement in high-SPL applications such as bars and clubs, as well as being well suited for mid-scale portable/live PA applications.
APPLICATIONS
- Performance Arts Spaces
- Theatres & Auditoria
- Bars, pubs and nightclubs
- FOH and DJ booth monitoring
- Medium-to-large scale live PA
- Theme parks and leisure venues
- Gymnasiums and small/medium sports arenas
- Portable corporate AV
- Conference rooms
- Houses of worship
- Cinemas
FEATURES
- Audio connection is via flush-mounted, recessed termination panel with both NL4 Speakon and connector strip while an extensive range of high performance steel mounting hardware is available, custom designed for VX 12.2Q and manufactured by K&M. This includes a yoke bracket and omni-mount for wall and ceiling location as well as eyebolt location points and can also be used as a floor wedge thanks to the cabinet form factor. Ergonomic Integrip™ recessed handles at each end makes one- and two-handed lift of the cabinet easy for optimum portability.
- The VX 12.2Q is available in black or white textured paint finish as standard, with matching grilles, and is also available in custom matched RAL colors as an option. A weather proof specification (WP) is also available as an option. This includes LINE-X™ cabinet outer-coating, internal prism sealing and treated transducers with perforated Grade 316 Stainless Steel grilles. All steel hardware is upgraded to Grade 304 SS, while all connector panel points are protected by a cover plate and weather-proof cable gland.
- 12” PowerDual full-range driver with QCW delivering best of both worlds – true point source combined with new horn design, resulting in less unwanted shading effects
- Discrete 12” bass driver for extended LF performance.
- Tightly controlled 75 x 40 degree dispersion for optimum coverage and forward gain
- Peak output 132 dB, rec. amp power 1 kW @ 8 Ohms
- Integrip™ handles ergonomically integrated into top and bottom of cabinet and pole-mountable for optimum portability.
- Flush-mounted TP with NL4 Speakon and barrier strip connections
- Rugged and highly compact birch plywood enclosure
- Available in black or white textured paint finish – custom colours optional.
- Available in weather proof specification (optional)
- Engineered and built in UK
- Five year loudspeaker warranty
- The VX 12.2Q is built around two discrete transducers, a 12” Dual Concentric driver and a 12” bass driver for greatly improved LF extension, mounted within a rugged birch plywood cabinet with aesthetically profiled edges and airnet-backed, powder-coated steel grille. The latest higher power handling 12” version of Tannoy’s exclusive point source, constant directivity PowerDual drive unit technology, coupled with the QCW device, brings best of both worlds – true point source acoustical performance combined with highly controlled 75 x 40 degree dispersion, resulting in less unwanted shading effects and optimized forward gain. The driver assembly can be rotated 90 degrees in the cabinet to allow for versatile mounting without compromise to dispersion requirements.
- [Please see the attached data sheet for Specifications]

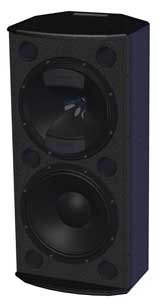

- [Black version pictured above]
