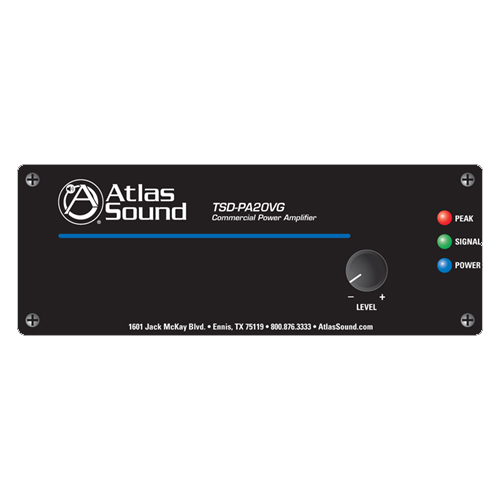

Atlas Sound TSD-PA20VG
Mono Amplifier, 20W

OUR PART #:  TSD-PA20VG

The TSD-PA20VG is a cost effective mono amplifier for 4O and distributed constant voltage speaker systems. Applications include hallways and classrooms.
Learn More
Our Price: $193.99
List Price: $241.99
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound TSD-PA20VG
Qty:
In Stock

Similar Products

The TSD-PA20VG is a cost effective mono amplifier for 4O and distributed constant voltage speaker systems. Applications include hallways and classrooms. The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting. For sound masking applications the TSD-PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob.

Atlas Sound TSD-PA20VG Features:

  • 4O/25V/70.7V/100V Output
  • One (1) Balanced Input
  • Removable Level Control with Set-It-And-Forget-It Security Cover
  • Input Signal and Peak Indicator LEDs
  • Cable Management System
  • Removable Phoenix Style I/O Connectors
  • Meets Most Energy Standards
  • Compact Chassis Design

Atlas Sound TSD-PA20VG Specifications:

  • Power Output:
    • 20W @ 4O
    • 10W @8O
    • 20W @ 25V/70V/100V Loads
  • Line Input Level: 500mV (-6dBV) Balanced
  • Frequency Response: 40Hz - 20kHz (+/-3dB)
  • Signal to Noise Ratio: 78dBV
  • Dimensions:
    • Height 1.5" (3.81 cm)
    • Width 4" (10.16 cm)
    • Depth 5.2" (13.2 cm)
  • Power Requirments: 24VDC
  • Idle Current: 50mA
  • Average Current: 160mA
  • Max Current: 490mA
