AKG PT470
UHF Wireless Bodypack Transmitter

OUR PART #:  PT470

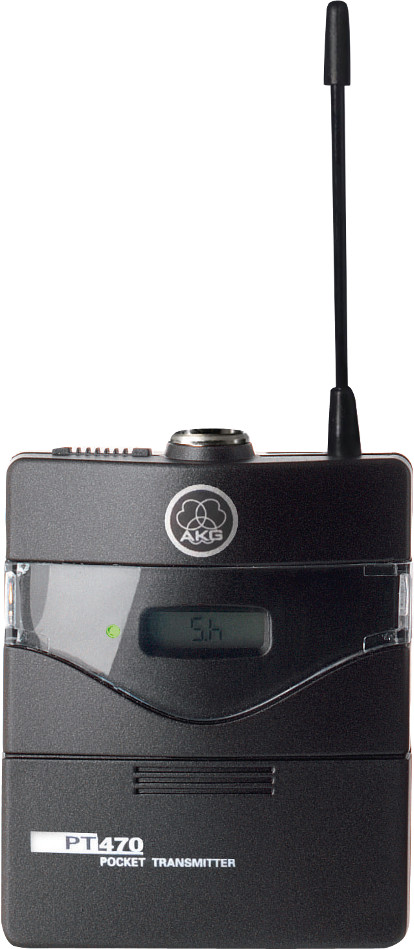

The AKG PT470 is an analog professional wireless bodypack transmitter.
Learn More
Selected Model Price: $229.00
List Price: $289.00
Save up to 21%!
Write the first review.
AKG PT470
Select a Model: (shipping times are approximate)

Related Products

The AKG PT470 is an analog professional wireless bodypack transmitter. A pilot tone transmission prevents unexpected startup noise, continuously sending transmitter data, including low battery information, to the receiver. An enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With the integrated charging contacts, a standard NiMH rechargeable battery can be charged inside the transmitter.

An optional RMS4000 external mute switch (sold separately) allows the user to mute the transmitter remotely. Its professional mini XLR audio connector makes the body pack compatible with a broad range of lavalieres and headsets.

AKG PT470 Wireless Bodypack Transmitter Features:

  • Pilot tone transmission for transmitter battery status monitoring and tone code squelch
  • Compact, rugged bodypack design for maximum wearing comfort
  • External mute switch connector for remote muting of the microphone
  • Integrated charging contacts for charging of a standard NiMH battery inside the transmitter
  • Infrared synchronization for instant transmitter setup

AKG PT470 Wireless Bodypack Transmitter Specifications:

  • Audio:
    • Audio Frequency bandwidth: 35 Hz to 20 kHz
    • Signal to Noise: 120 dB-A
    • THD at 1 kHz: 0.7%
  • Enhanced:
    • Peak deviation: 48 kHz
  • Pocket Transmitter:
    • Nominal deviation: 20 kHz
    • Radio Output Power (min/max): 10 to 50 mW
    • Transmitter Synchronization: Infrared
  • Audio Input: 3-pin mini female XLR
    • Maximum audio level: 12 dB
  • Mute Switch Interface: 1/4" female mono jack
  • Battery 1:
    • Battery type: LR6 AA alkaline battery
    • Number of Batteries: 1
    • Operating Time: 7 hours
  • Battery 2:
    • Battery type: HR 6 AA (NiHM) rechargeable battery
    • Compatible Charging System: CU400
    • Number of Batteries: 1
    • Operating Time: 8 hours
  • Battery 3:
    • Battery type: FR 6 AA lithium battery
    • Number of Batteries: 1
    • Operating Time: 14 hours
  • Design:
    • Body: Plastic
    • Finish: black
  • Dimensions (LxHxW): 30 x 73.5 x 60 mm
  • Radio:
    • Switching bandwidth: 30 MHz
    • Recommended simultaneous channels: 2
    • Number of selectable frequencies: 1220 (selectable in 25kHz steps)
    • Frequency Selection: Selectable frequency in 25kHz steps
    • Wireless channels within device: -
    • Radio Range (Line of Sight): 100m (depending on antenna system)
    • Switchable RF Power: no
    • Modulation: FM (Frequency Modulation)
    • Pilot Tone: Yes

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
