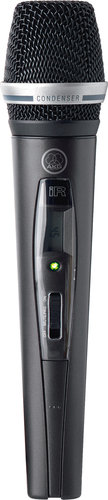

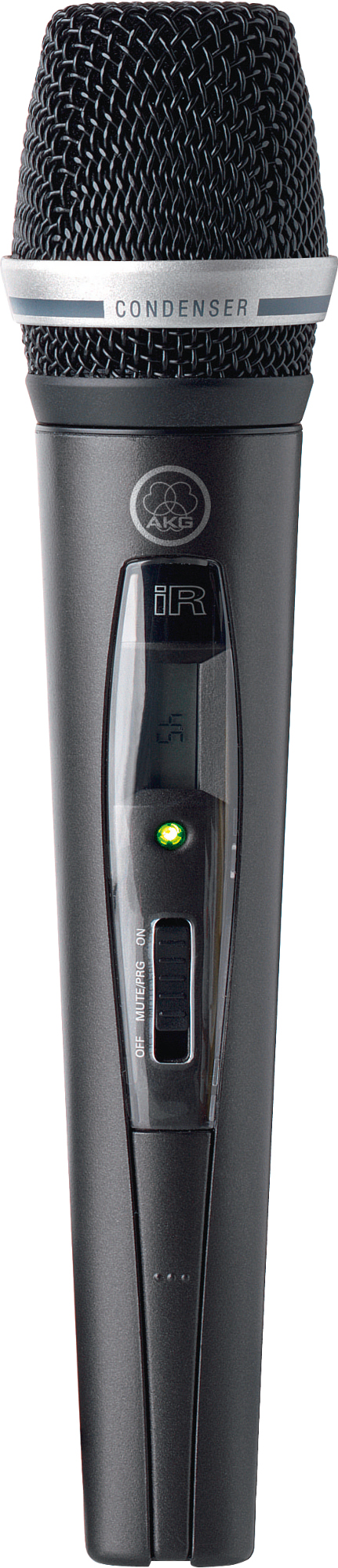

AKG HT470/C5
UHF Wireless Handheld Transmitter, with C5 Condenser Capsule

OUR PART #:  HT470/C5

The AKG HT470/C5 high-end handheld transmitter is a rugged tool built to take even very rough handling, and comes equipped with the C5 condenser capsule.
Learn More
Selected Model Price: $289.00
List Price: $369.00
Save up to 22%!
Write the first review.
AKG HT470/C5
Select a Model: (shipping times are approximate)

Related Products

The AKG HT470/C5 high-end handheld transmitter is a rugged tool built to take even very rough handling, and comes equipped with the C5 condenser capsule.

Up to 50 mW output power and the unique dipole transmitter antenna ensure reliable transmission and a long range even if the user covers the antenna with their hand.

AKG HT470/C5 Features:

  • Up to 50 mW output power for long range
  • Noiseless ON/OFF switch
  • Powered by a single dry or rechargeable AA size battery
  • Long battery life (14 hours with lithium batteries, 6 hours with single AAsize dry battery, 8 hours with optional high performance rechargeable battery)for low operating cost
  • Infrared data download from receiver for instant setup
  • Battery capacity display
  • Battery status information transmitted to receiver
  • Integrated charging contacts for charging batteries inside transmitter

AKG HT470/C5 Specifications:

  • Carrier frequency range:
    • 500 to 530 MHz
    • 570 to 600 MHz
    • 600 to 630 MHz
    • 650 to 680 MHz
    • 680 to 710 MHz
    • 720 to 750 MHz
    • 790 to 820 MHz
    • 835 to 865 MHz
  • Audio bandwidth: 35 to 20,000 Hz
  • THD: <0.7% (at 1 kHz)
  • Signal/noise ratio: 120 dB(A)
  • Modulation: FM
  • RF output power: max. 50 mW (ERP)
  • Battery life:
    • 1.5 V LR6 AA size dry battery: 6 hours typ.
    • 1.5 V FR6 AA size lithium battery: 14 hours typ.
    • 1.2 V HR6 (NiMH) >=2,100 mAh AA size rechargeable battery: 8 hours typ.
  • Dimensions: 236.9 x 51.1 mm max. dia. (9.3 x 2 in.)
  • Net weight: 240 g (8.5 oz.)
  • Patent(s): Remaining battery life (Patent no. AT 408.280, GB2.349.230, US 6,344,730

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
