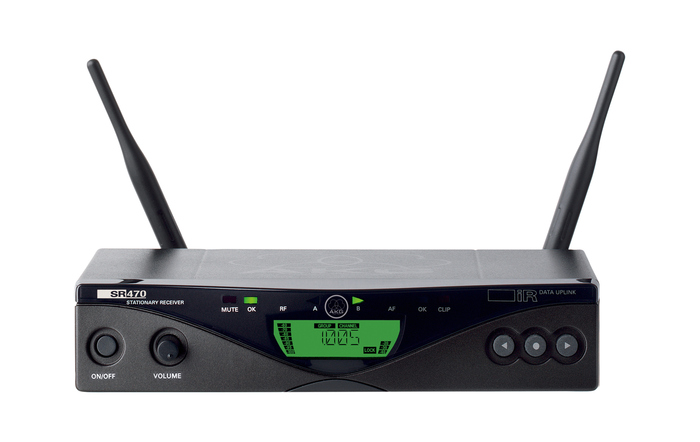

AKG SR470 BD7 470 Series Professional Wireless Stationary Receiver

With AKG's SR 470, you can simultaneously operate up to 16 channels within the same frequency band, and you can even set up reliable systems with as many as 48 channels by using multiple frequency bands. The backlighting on the display alters in color to warn the user of such critical operating conditions as low transmitter battery, audio peaks, or low RF signal strength.

Applications:

• Conference
• Seminar
• House of Worship / Church
• School
• Live Sound / Club Music

AKG SR 470 Includes:

• (1) SR470 Receiver
• (2) BNC UHF Antennas
• (1) RMU4000 Rack mount kit

AKG SR 470 Features:

• 30.5 MHz tuning range
• Half 19" all metal case diversity receiver
• Automatic setup function designed for less experienced operators
• Up to 16 pre-programmed frequencies per group
• Pilot Tone prevents unexpected start-up noise
• Infrared link of all frequency and setup data to the transmitter
• Transmitter battery status monitoring
• Programmable warning functions using a two-color display backlighting to indicate critical operation conditions (low battery, audio peak, RF low)
• Compatible with WMS 4500 antenna splitters, power supplies, and high quality directional and omni-directional antennas

AKG SR 470 Specifications:

• Operating frequency ranges:
  • Band 7: 500.1 to 530.5 MHz
  • Band 8: 570.1 to 600.5 MHz
  • Band 9: 600.1 to 605.9 & 614.1 to 630.5 MHz
• Audio bandwidth: 35 Hz to 20 kHz
• THD: < 0.3% (at 1 kHz)
• Signal/noise ratio: 120 dB(A)
• Sensitivity 6.3 dBµV / -100 dBm
• Switching bandwidth: < = 30.5 MHz (country dependent)
• Diversity System: Microprocessor-controlled diversity
• Modulation: Wideband FM
• Audio outputs:
  • (1) balanced XLR
  • (1) unbalanced TS ¼" jack
• Balanced level: switchable to -30 or 0 dBm
• Dimensions (½ 19" 1RU): approx. 7.8" x 1.7" x 7.4" (200 x 44x 190mm)
• Net weight: 2.2 lbs. (972 g)

Note

NOTE: Power supply sold separately. Please refer to "Accessories" tab for information on an available compatible power supply, or contact your Sales Pro for more information.
