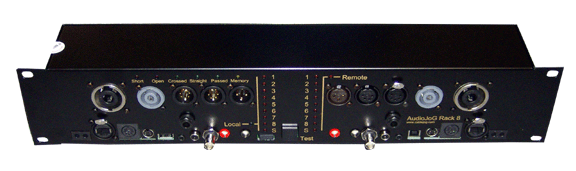

Caldwell Bennett RACK-8 AudioJog Rack 8 2RU Audio/Lighting/Network Single & Double-End Cable Tester

Connectors:

• Red & Black "banana"
• 3, 4 & 5 Pin XLR Male & Female
• 1/4" stereo or mono
• Single or Twin Bantam, stereo or mono
• 1/8" stereo or mono
• 2,4 & 8 Pole Speakon
• DIN 3, 5 & 8 Pole
• MINI DIN 4 Pole (S Video)
• RCA
• BNC
• RJ45, Ethercon
• USB A & B

There are 2 rows of 9 LEDs corresponding to each of the possible connector pins and one for the screen (or ground) connection. As each pin is activated, the LEDs indicate all connections associated with that pin, so that short, open and crossed circuits can be easily found. The LEDs also show the possibility of high resistance or leakage connections. 2 LEDs indicate a good digital network connection, either Straight through, or Crossed over.

Memory option: There are 6 LED's indicating the state of the MEMORY option. If the MEMORY LED is on, then AudioJoG Rack 8 automatically scans all the connections and compares against information held with just one press of the test button. MEMORY works in both test modes.

Test modes:

• DOUBLE ENDED - both ends of the cable under test are plugged into AudioJoG Rack 8.
• SINGLE ENDED - one end of the cable under test is plugged into AudioJoG Rack 8 the other into another AudioJoG Rack 8 or the small hand held AudioJoG Pro.

Specification Double {Single} Ended:

• Continuity and Short Circuits, less than 255K {75K} ohms
• Open Circuits (end to end and between connected pins), greater than 255K {75K} ohms.
• Less than 2 {5} second test time
• L 75mm W 483mm (19") D 88mm (2U)
• Requires 9V dc Power supply (supplied)
