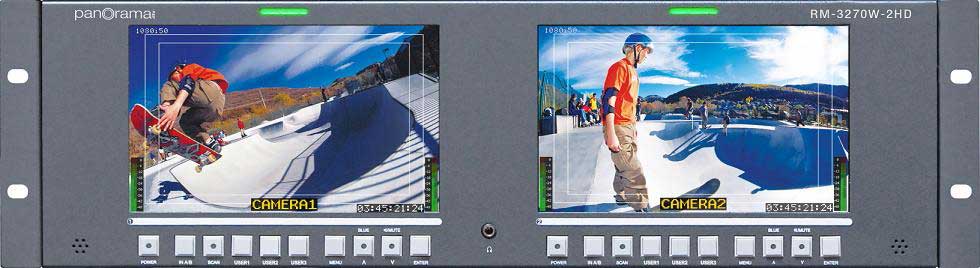

TecNec RM3270W-2HD
Dual 7" Rack Mount LCD monitors

OUR PART #  RM3270W-2HD

Our Price: $3,174.91
List Price: $3,900.00
You save 19%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

The RM Series range of in-rack HD/SD-SDI and CVBS video monitors is great for feeds in mobile trucks, news and transmission control rooms, duplication and post-production applications.

These tilting monitors come standard with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format and built-in color bars, as well as an intuitive on-screen configuration menu.

A headphone jack or speakers provide audible stereo monitoring of the left and right channels.

Each of the two high-resolution LCD screens display high-definition or standard-definition video at either 4:3 or 16:9 aspect ratio. Parameters are selected and adjusted using an on-screen display menu.

Specifications:

  • Rackmount design with vertical tilt
  • Rack Height: 3RU
  • Weight: 4 lbs
  • Dimensions: 5.2" x 19" x 2.4"
  • Power Consumption: 10W (3.8A max)
  • Signals Monitored: Analog, HD-SDI, SD-SDI
  • Analog Inputs: 4 auto-sensing composite (CVBS) or HD/SD-SDI video inputs on BNC (1 per screen); 2 analog audio inputs on RCA
  • Analog Outputs: 2 Analog outputs on RCA
  • SDI Inputs: 4 auto-sensing composite (CVBS) or HD/SD-SDI video inputs on BNC (2 per screen)
  • Level Meters: On-screen for up to 8 of 16 channels
  • Level Meter Dynamics: VU or PPM or both
  • # of Displays: 2
  • Display Size: 7.0" diagonal
  • Display Characteristics: Active Color Matrix Amorphous Silicon TFT
  • Display Modes: All HD/SD-SDI and CVBS
  • Video Format: Up to 1080I60/P30
  • Active Viewing Area: 6" x 3.6"
  • Native Aspect Ratio: 16:9 & 4:3 (Selectable)
  • Resolution: 800 x 480
  • Viewing Angle: 140 degrees H x 100 degrees V
  • Pixel Pitch: 0.63MM H x 0.1905MM V
  • Pixel Response: <25ms typical
  • Luminance: 400 CD/M^2
  • Contrast: 400 to 1
  • Chromacity: 72% ITU-R BT.709-5, SMPTE C and EBU Profiles
  • Color Depth: 16.7M colors
  • Audio Outputs: Integrated left and right speakers, 1/8" stereo headphone jack (mutes speakers)
  • Other Features: Local control (via menu operation) for: Safe Area, Safe Title, Center Markers, H/V Delay, Waveform, Input Format Display

Click to download

TecNec RM3270W-2HD
Dual 7" Rack Mount LCD monitors

OUR PART #  RM3270W-2HD

Product Information:

The RM Series range of in-rack HD/SD-SDI and CVBS video monitors is great for feeds in mobile trucks, news and transmission control rooms, duplication and post-production applications.

These tilting monitors come standard with in-monitor level metering, selectable video waveform and vectorscope, safe and title markers, labeling, tally, timecode, video format and built-in color bars, as well as an intuitive on-screen configuration menu.

A headphone jack or speakers provide audible stereo monitoring of the left and right channels.

Each of the two high-resolution LCD screens display high-definition or standard-definition video at either 4:3 or 16:9 aspect ratio. Parameters are selected and adjusted using an on-screen display menu.

Specifications:

  • Rackmount design with vertical tilt
  • Rack Height: 3RU
  • Weight: 4 lbs
  • Dimensions: 5.2" x 19" x 2.4"
  • Power Consumption: 10W (3.8A max)
  • Signals Monitored: Analog, HD-SDI, SD-SDI
  • Analog Inputs: 4 auto-sensing composite (CVBS) or HD/SD-SDI video inputs on BNC (1 per screen); 2 analog audio inputs on RCA
  • Analog Outputs: 2 Analog outputs on RCA
  • SDI Inputs: 4 auto-sensing composite (CVBS) or HD/SD-SDI video inputs on BNC (2 per screen)
  • Level Meters: On-screen for up to 8 of 16 channels
  • Level Meter Dynamics: VU or PPM or both
  • # of Displays: 2
  • Display Size: 7.0" diagonal
  • Display Characteristics: Active Color Matrix Amorphous Silicon TFT
  • Display Modes: All HD/SD-SDI and CVBS
  • Video Format: Up to 1080I60/P30
  • Active Viewing Area: 6" x 3.6"
  • Native Aspect Ratio: 16:9 & 4:3 (Selectable)
  • Resolution: 800 x 480
  • Viewing Angle: 140 degrees H x 100 degrees V
  • Pixel Pitch: 0.63MM H x 0.1905MM V
  • Pixel Response: <25ms typical
  • Luminance: 400 CD/M^2
  • Contrast: 400 to 1
  • Chromacity: 72% ITU-R BT.709-5, SMPTE C and EBU Profiles
  • Color Depth: 16.7M colors
  • Audio Outputs: Integrated left and right speakers, 1/8" stereo headphone jack (mutes speakers)
  • Other Features: Local control (via menu operation) for: Safe Area, Safe Title, Center Markers, H/V Delay, Waveform, Input Format Display

Click to download
