RTS SAP-1626
Source Assignment Panel with 12 Two-Wire Intercoms Channels & 3 Program Audio Channels

OUR PART #  SAP1626

Our Price: $4,670.00
List Price: $4,740.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RTS' SAP-1626 Source Assignment Panel provides a convenient means of assigning any one of 12 intercom channels and/or three program audio channels to 26 individual or groups of intercom user stations.  Viewed as a "matrix switch", it transforms a basic two buss intercom system into a 15 buss system.  When used as an intermediary between Series 800 (conference line) Master Stations and TW Intercom System user stations, the SAP-1626 distributes the master station channels to each group of user stations.  While the master stations have multiple channel capability and can access a number of lines independently or simultaneously, user stations have only two channel capability.  The SAP-1626 programs each user station to correspond with the same channels on the master stations. Once the channel assignments are made, the master station selectively communicates with any combination of user stations programmed on different channels.  The SAP-1626 can also be used to assign channels in a 15-channel user station system configuration without master stations.

There are 3 kinds of busses in the SAP-1626: 1) two-way two-wire type intercom buses, 2) DC powered two-way two wire intercom busses, and 3) program audio busses.  There are twelve primary intercom busses and three program or secondary intercom buses.

Three program buses allow three different program sources to be connected to a SAP-1626.  TW user stations can be assigned these programs on their channel two connection (bottom row of switches on the SAP-1626).  If TW user stations are assigned one of the program buses with program not connected, the buss functions as an intercom buss.

In addition to the twenty outputs discussed above, there are six additional outputs. These outputs are intended primarily for cameras, but can be used for additional TW intercom stations or groups of stations. These six outputs are available on a twenty-five pin "D" type connector on the back of the SAP-1626.

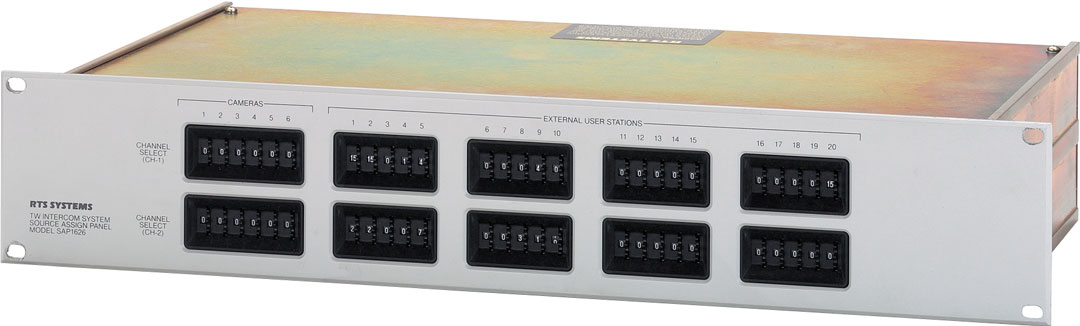

The SAP-1626 fits into a standard 2RU 19" W equipment rack.  The front panel contains the thumbwheels used to accomplish the matrix switching.

Specifications:

  • Maximum Switch Carrying Current: 2.0 amps per output
  • Maximum Switch Breaking Current: 0.5 amps per output
  • Inputs:
    Intercom: 12 lines, full-duplex
    Levels: 2 volts p-p nominal In and out
  • Program:
    3 sources, simplex
    Input Impedance: 800 ohm
    Input Level Range: -4dBm to + 8dBm
  • Outputs:
    User Station: 20
    Camera: 6
  • Power Requirements: Power is derived from the TW Intercom Power Supply(s)
  • Dimensions: 3.46" H x 19" W x 9.8" D (88 x 484 x 249 mm)
  • Weight: 10 lbs (4.5 kg)

RTS SAP-1626
Source Assignment Panel with 12 Two-Wire Intercoms Channels & 3 Program Audio Channels

OUR PART #  SAP1626

Product Information:

RTS' SAP-1626 Source Assignment Panel provides a convenient means of assigning any one of 12 intercom channels and/or three program audio channels to 26 individual or groups of intercom user stations.  Viewed as a "matrix switch", it transforms a basic two buss intercom system into a 15 buss system.  When used as an intermediary between Series 800 (conference line) Master Stations and TW Intercom System user stations, the SAP-1626 distributes the master station channels to each group of user stations.  While the master stations have multiple channel capability and can access a number of lines independently or simultaneously, user stations have only two channel capability.  The SAP-1626 programs each user station to correspond with the same channels on the master stations. Once the channel assignments are made, the master station selectively communicates with any combination of user stations programmed on different channels.  The SAP-1626 can also be used to assign channels in a 15-channel user station system configuration without master stations.

There are 3 kinds of busses in the SAP-1626: 1) two-way two-wire type intercom buses, 2) DC powered two-way two wire intercom busses, and 3) program audio busses.  There are twelve primary intercom busses and three program or secondary intercom buses.

Three program buses allow three different program sources to be connected to a SAP-1626.  TW user stations can be assigned these programs on their channel two connection (bottom row of switches on the SAP-1626).  If TW user stations are assigned one of the program buses with program not connected, the buss functions as an intercom buss.

In addition to the twenty outputs discussed above, there are six additional outputs. These outputs are intended primarily for cameras, but can be used for additional TW intercom stations or groups of stations. These six outputs are available on a twenty-five pin "D" type connector on the back of the SAP-1626.

The SAP-1626 fits into a standard 2RU 19" W equipment rack.  The front panel contains the thumbwheels used to accomplish the matrix switching.

Specifications:

  • Maximum Switch Carrying Current: 2.0 amps per output
  • Maximum Switch Breaking Current: 0.5 amps per output
  • Inputs:
    Intercom: 12 lines, full-duplex
    Levels: 2 volts p-p nominal In and out
  • Program:
    3 sources, simplex
    Input Impedance: 800 ohm
    Input Level Range: -4dBm to + 8dBm
  • Outputs:
    User Station: 20
    Camera: 6
  • Power Requirements: Power is derived from the TW Intercom Power Supply(s)
  • Dimensions: 3.46" H x 19" W x 9.8" D (88 x 484 x 249 mm)
  • Weight: 10 lbs (4.5 kg)
