Radio Design Labs DS-AVMB2
Stainless Steel Audio/Video Monitor BNC Jack Panel


Our Price: $67.89
List Price: $90.80
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Radio Design Labs' DS-AVMB2 is the ideal choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors.  The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.

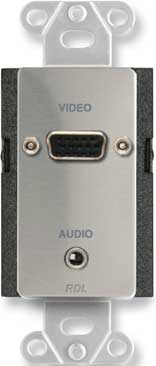

The front panel features a standard video monitor connector.  Video components, video sync and their respective ground returns are separated to feed five BNC jacks on the rear panel.  The BNC jacks are isolated from the module chassis ground so the appropriate signal grounds pass through without adding a video ground loop at the panel.

The front panel features a single stereo mini-jack, intended for stereo consumer line-level audio sources.  The left and right signal inputs are fed to a rear-panel detachable terminal block.  The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.


  • Stereo Audio Input to Stereo Audio Output
  • Stereo Input on Mini-Jack
  • Unbalanced Audio Output on Detachable Terminal Block
  • Video Monitor Input on Standard Video Connector
  • Rear-Panel Video Outputs (R,G,B,H,V) on BNC Jacks
  • BNC Jacks are Isolated from Chassis Ground

Typical Performance:

  • Audio input connector: Mini-jack 3.5 mm (Stereo
  • Video input connector: Female DB15
  • Audio output connector: Detachable terminal block (Left and Right unbalanced audio)
  • Video output connectors (5): BNC (R: Red; G: Green; B: Blue; H: Horizontal Sync; V: Vertical Sync
  • Dimensions: 4.13" H x 1.7" W x 1.4" D (10.49 x 4.32 x 3.56 cm)
  • Mounting Box Minimum Dimensions: 1.8" W x 0.15" D (4.47 x 0.38 cm) plus the depth of the installer-provided BNC connectors
