Atlas IED ECM-20SH 20A Single Housing Power Conditioner and AC Spike Suppressor

OUR PART #: ECM-20SH MFR #: ECM-20SH

Copied to clipboard

The Atlas Power ECM-20SH is a 120V 60Hz AC... ...Read more

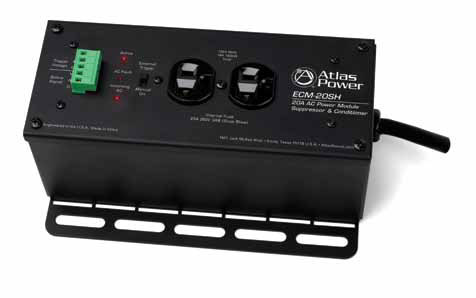

Atlas IED ECM-20SH 20A Single Housing Power Conditioner And AC Spike Suppressor Image 1
Atlas IED ECM-20SH 20A Single Housing Power Conditioner And AC Spike Suppressor
Our Price: $305.99
List Price: $381.99
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$9/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Atlas Power ECM-20SH is a 120V 60Hz AC, 20A Single Housing (SH) Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an Atlas Power Sequence controller, ECS-6RM or the ECS-3, up to 1000ft away.

The ECM-20SH features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies. If an AC spike or surge occurs, the ECM-20SH also incorporates Clamping Suppression technology to prevent the unwanted energy from getting into your AV system. Other features include a Manual Bypass Switch, Incoming AC presence LED, Active LED and an AC Fault indicator. When interfaced with the ECS-6RM Sequencer controller, Extreme Voltage Shutdown Circuitry (EVS) is active, along with Voltage and Current status readings.

Features:

  • 2 Outlets, 20A
  • Radio Frequency and Electromagnetic Interference Filtering
  • Spike & Surge Suppression
  • Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
  • AC Fault Indicator
  • Fuse Protection @ 20A Slow Blow
  • Manual Bypass Switch
  • Active Outlet LED
  • RoHS Compliant

Specifications:

  • Current Rating 20 Amps
  • Operating Voltage 102-132VAC
  • Minimum Spike Clamping Voltage 460 VRMS @ 3000A
  • Maximum Spike Clamping Voltage 6000V
  • Power Consumption 5 Watts
  • Power Requirements 120V 60Hz
  • Height 3.0" (76.2mm)
  • Width 8.5" (215.9mm)
  • Depth 3.5" (88.9mm)
  • Weight 5.5 lbs (2.49 kg)
  • Certifications MET (UL 1449)
