Symetrix ARC-2E Adaptive Remote Control Wallplate for Symnet, 8 Character Display

OUR PART #: ARC-2E MFR #: 80-0056

Copied to clipboard

The Symetrix ARC-2E Adaptive Remote Control Wall Panel taps into the full power of the Symetrix DSP system with twenty-four menus with up to sixteen enumerations each... ...Read more

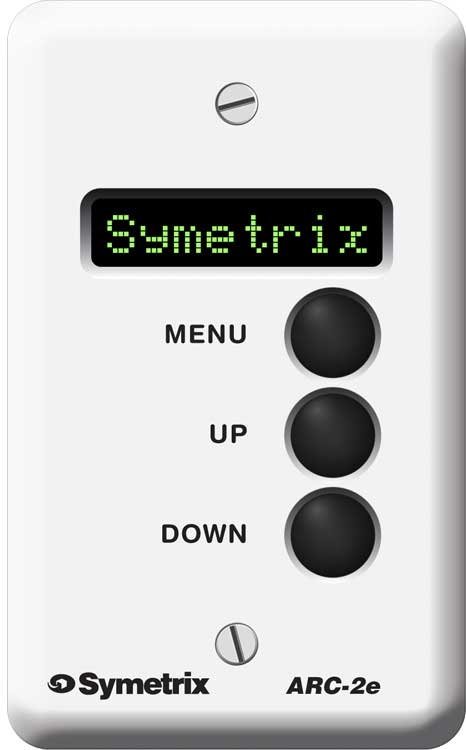

Symetrix ARC-2E Adaptive Remote Control Wallplate For Symnet, 8 Character Display Image 1
Symetrix ARC-2E Adaptive Remote Control Wallplate For Symnet, 8 Character Display
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Symetrix ARC-2E Adaptive Remote Control Wall Panel taps into the full power of the Symetrix DSP system with twenty-four menus with up to sixteen enumerations each, that address multiple functions or initiate complex logic-based control events.

Functions include: Gain, preset triggering, source selection, room combining and volume control.

Intuitive Navigation: Pressing the menu button navigates through the menu names. The menu button also acts as a preset trigger when a preset list is scrolled. The up/down arrow buttons adjust parameter settings and scroll through preset lists. Holding the menu button and using the up/down arrow keys moves forward or backward through the menus.

Programmable Setup: Menu brightness in "active" and "inactive" states are set independently, so the display will "sleep" in light-sensitive environments like theaters. If the ARC-2e goes idle, it can scroll a message and return to the top of its menu tree. Upper and lower parameter limits help contain the range of adjustment and a button press lockout will prevent tampering.

The menu-driven ARC-2e Adaptive Remote Control Call Panel is used with Symetrix and Symnet products and controls up to 24 parameters in a system.

Symetrix ARC-2E Features:

  • 8-character backlit display supports up to 31 scrolling characters
  • Instant user feedback for control assignments, default settings, and actions.
  • Three buttons navigate menus, change values and enable for disable the remote control
  • All control assignments, including item labeling, parameter limits and firmware version upgrades are handled by software included with Symetrix DSP hardware.
  • Standard with a white plastic faceplate, ARC-2e mounts into a single gang electrical box (US).
  • External power supply (PS-6) and aluminum faceplate sold separately.

Symetrix ARC-2E Specifications:

  • Processor: Atmel ATmega 128
  • Field-Upgradeable Firmware: Yes
  • Number of Menus: 24
  • Enumerations per Menu: 16
  • Menu Range Limits: Yes
  • Maximum Characters per Menu Name: 31
  • Maximum Number of Strings*: 255 (*A “string” is equal to eight characters.)
  • Maximum Operating Voltage: 30VDC
