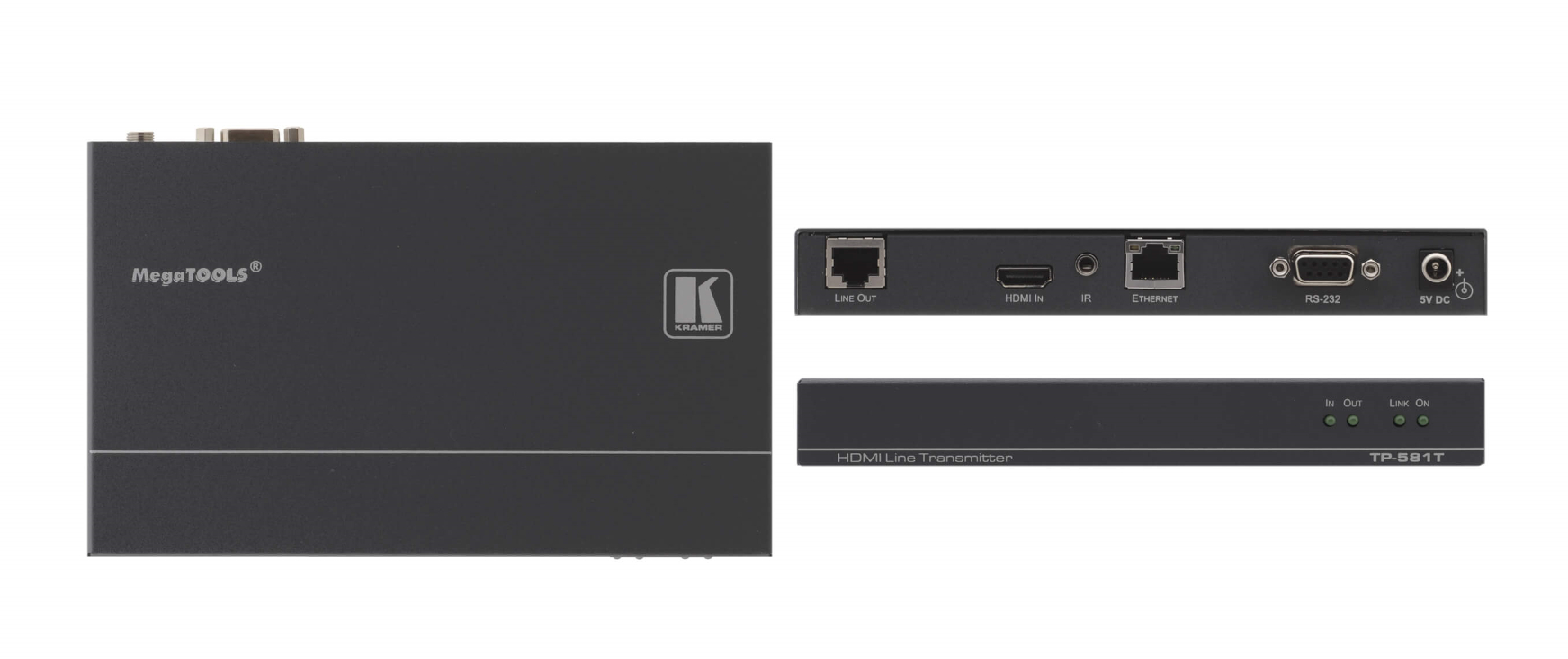

Kramer TP-581T HDMI, Bidirectional RS-232, Ethernet and IR over HDBaseT Twist Pair Transmitter

The TP-581T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. The TP-581T takes the HDMI input, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The TP-582R converts the twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK® audio outputs.

Features

• Max Data Rate - 2.25Gbps
• HDTV Compatible
• HDCP Compliant
• HDMI Support - HDMI (V.1.4 with Deep Color,x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD,CEC).
• 3D Pass-through
• EDID PassThru - Passes EDID/HDCP signals from source to display
• Bidirectionaly RS-232 Interface - Commants and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit.
• Ethernet Interface - Passes 100CaseT
• System Range - Up to 100m (330ft)
• Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 andBC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
• Control -front panels
• Compact MegaTOOLS - units can be rack mounted side-by-side in a 1U rack space with the optional RK-TB universal rackadapter.
