Xantech 78944-PSRP
Connecting Block & Power Supply RP

OUR PART #  78944-PSRP

Call for price! Not available online.

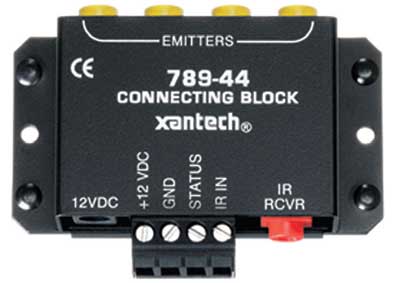

The model 789-44 provides a quick low cost means of connecting Xantech IR receivers and keypads to four single or four dual emitters, with a power supply, in an infrared repeater system. It can also provide emitter expansion for various Xantech devices, such as the 590, 710, 792-10, 795-20, 796-20, etc. The STATUS terminal provides a convenient tie point for voltage to drive the STATUS indicator on certain Xantech products, such as the 780-80 IR Receiver or certain Xantech products, such as the 780-80 IR Receiver.


  • Includes power supply
  • Inputs: 1- Screw type 4-terminal plug-in. 1 - IR Receiver 1/8" stereo mini jack
  • Outputs: 4 - Emitter ports (1/8" stereo mini jacks) parallel driven
  • Contains a 470 Ohm resistor in series with each emitter output
  • Xantech 282, 283,284 & 286 Mini Emitters may be used
  • Power requirements: 12VDC. Uses 781RG or 782-00 Power supplies. (NOTE: A power supply is not connected to the 789-44 when it is used as an emitter expander
  • 2.1mm coaxial power jack
  • Dimensions: 2-15/16" x 1-3/4" x 13/16"
