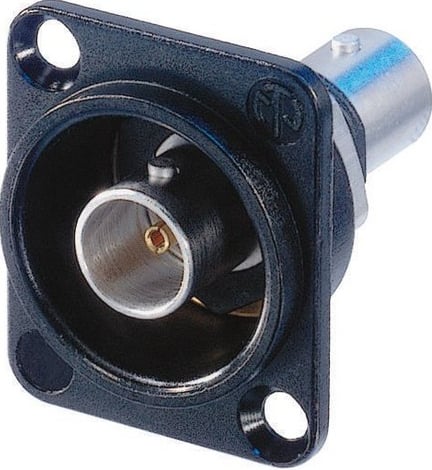

Neutrik NBB75DFIB-P
75 Ohm Isolated BNC Bulkhead Jack in Black D-Shape Housing

OUR PART #:  NBB75DFIB-P

Neutrik's NBB75DFIB-P bulkhead connector offers a true 75 ohm design for serial and digital (HD) signals.
Learn More
Our Price: $9.03
List Price: $12.77
Save up to 41% when you order by quantity!
  • Buy 25: $8.16 each.
  • Buy 50: $7.87 each.
  • Buy 100: $7.58 each.
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NBB75DFIB-P
Qty:
Similar Products

Neutrik's NBB75DFIB-P bulkhead connector offers a true 75 ohm design for serial and digital (HD) signals.  The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

Isolated bulkhead jack, feedthrough in black D-shape housing, protruding version (makes locking and unlocking of conventional BNC cable connectors easy)

Features:

  • Gold-plated center contact
  • True 75 ohm design meets the stringent HD requirements
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
  • Standard D-shape housing
  • Protruding bulkhead jack (makes locking and unlocking of conventional BNC cable connectors easy)
  • Color coding possible

Specifications:

  • Signal Type: HD,SDI,Video,AES/EBU,Composit,YUV,RGB,RGBH,RGBHV
  • Contact resistanc:  = 3 mOhm (inner)
  • Dielectric strength: 1.5 kVdc
  • Impedance: 75 ohms
  • Insulation resistance: > 5 GOhm
  • Rated voltage: 500 V
  • VSWR:
    = 1.03 / > 37 dB up to 1 GHz
    = 1.05 / > 32 dB up to 2 GHz
    = 1.08 / > 28 dB up to 3 GHz
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Bayonett
  • Mounting direction: front
  • Chassis shape: D
  • Contacts: Brass (CuZn39Pb3) (Ground contact)
  • Contacts: Brass (CuZn39Pb3/CuBe), 0.2 µm AuCo (Center contact) (Center contact)
  • Insert: Teflon PTFE
  • Shell: Brass (CuZn39Pb3)
  • Shell: Polyacetal (POM) (Insulation Sheell)
  • Shell plating: Optalloy®
  • Labeling: no
  • D-Shape housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating
  • Standard compliance: IEC 6016908, MIL 348A
  • Temperature range: -30 °C to +85 °C
