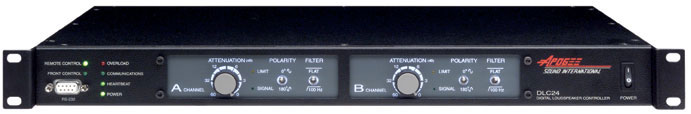

Apogee Sound (Bogen) DLC24
Loudspeaker Controller, 2x4 (92-6000)

OUR PART #:  92-6000

Our Price: $1,851.90
List Price: $2,171.00
You save 15%!
Write the first review.
Apogee Sound (Bogen) DLC24
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The DLC24 is a loudspeaker controller designed to provide the key elements that help ensure optimal loudspeaker system performance and management in a variety of live sound and fixed installation applications. It is intended to be the last device in the signal chain before the power amplifier(s). The DLC24 is usually fed signal from a mixing console, although the source may be one of a number of devices such as a tape player, CD player, or equalizer.


  • Configurable for any Combination of Apogee Speaker Types
  • Over 1356 Milliseconds of Delay (per channel)
  • System Design Capabilities
  • Level, Polarity, and Filter Control
  • Two Input, Four Output Controller
  • Wide Assortment of Speaker Status Information
  • 12 Bands of Parametric Equalization (per channel)
  • Accepts either Analog or Digital Input Signals
  • Front and Remote Control
  • Network with other DLC24's


Analog Inputs

  • Number of Inputs: (2)
  • Connectors: 3-pin Female XLR
  • Type: Electronically balanced
  • Impedance: 25k ohm
  • Max. Input Line Level: +15 dBu
  • CMRR: > 85 dBu

Digital Inputs

  • Number of Inputs: (1)
  • Connectors: 3-pin Female XLR
  • Type: AES-EBU

Analog Outputs

  • Number of Outputs: (4)
  • Connectors: 3-pin Male XLR
  • Type: Electronically balanced
  • Impedance: 100 ohm
  • Max. Output Level: +15 dBu

PC Interface

  • RS232: 9-pin D-Sub, front panel
  • RS422: 5-pin Female XLR Input, rear panel
  • 5-pin Male XLR Loop, rear panel

Min. Pc System Requirement

  • Operating System: Windows® 2000 or XP
  • Processor: 200 MHz Pentium III
  • Memory: 128 MB RAM

System Performance

  • Frequency Response: 20 Hz – 20 kHz, +/- 0.5 dB
  • Dynamic Range: > 100 dBu
  • Noise: > 90 dBu
  • THD+N: < 0.009%, 20 Hz – 20 kHz
  • Max. Delay: 1356 ms (adjustable in 1 ms steps)
  • Filters: 12 Band per input channel
  • Limiters: Proprietary, tri-stage Multi-band


  • Input AC: 100 – 240V AC, 1.1A, 50 – 60 Hz
  • Connector: 3-pin IEC


  • Product Weight: 10 lb.
  • Dimensions: 19" W x 1-3/4" H x 11" D
