Blackmagic Design ATEM Camera Converter Battery Powered Optical Fiber Converter and Extender with Talkback, Tally and Mic Inputs

OUR PART #: ATEM-CAMERA-CONVERTR MFR #: BMD-SWRCONV

Copied to clipboard

Get everything you need for cameras in live production with a single converter. ...Read more

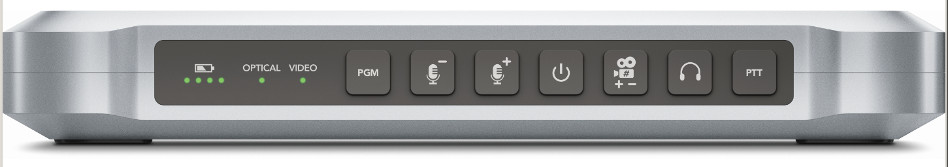

Blackmagic Design ATEM Camera Converter Battery Powered Optical Fiber Converter And Extender With Talkback, Tally And Mic Inputs Image 1
Blackmagic Design ATEM Camera Converter Battery Powered Optical Fiber Converter And Extender With Talkback, Tally And Mic Inputs Image 2
Blackmagic Design ATEM Camera Converter Battery Powered Optical Fiber Converter And Extender With Talkback, Tally And Mic Inputs
Our Price: $625.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Get everything you need for cameras in live production with a single converter. The Blackmagic Design ATEM Camera Converter lets you connect your camera’s SDI or HDMI outputs for conversion to optical fiber, while your switcher program feed can be fed back via optical fiber for camera monitoring. ATEM Camera Converter includes an internal battery, talkback, tally, and microphone inputs.

Optical fiber is the perfect connection because it’s used in computer networking and is common, affordable and easy to purchase. ATEM Camera Converter uses a single mode optical fiber pair with LC type connectors, so you get the freedom to connect your cameras up to 147,000 feet or 45KM from your switcher. That blows away the 300 feet limitation of SDI cable, so you can place cameras close to the action. Optical fiber is low cost, thin, and lightweight, plus is fully compatible with broadcast optical fiber SDI products.

Specifications

  • Connections
    • SDI Video Input 1 x 10 bit SD/HD switchable
    • SDI Video Output 1 x 10 bit SD/HD switchable
    • HDMI Video Input 1 x HDMI 1.3 type A connector
    • HDMI Video Output 1 x HDMI 1.3 type A connector
    • Optical Fiber Video Input 1 x 10 bit SD/HD switchable via LC connector
    • Optical Fiber Video Output 1 x 10 bit SD/HD switchable via LC connector
    • Analog Audio 2 x balanced 1/4" TRS connectors (stereo), line or microphone level in. When connected, replaces audio from SDI In or HDMI In. 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones (compatible with iPhone compatible headsets).
    • Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates
  • Standards
    • SDI Compliance SMPTE 259M, SMPTE 292M
    • Video Sampling 4:2:2
    • Audio Sampling Television standard sample rate of 48Khz, 24 bit A/D conversion
    • Color Precision 10 bit
    • Color Space 4:2:2 YUV
    • Multiple Rate support SDI and HDMI switches between 270Mb/s SD-SDIand 1.5Gb/s HD-SDI
  • Extras
    • Software Included Converter Utility
    • Firmware Upgrade Firmware built into software driver. Loaded at system startup or via updater software
    • Operating System Compatibility Microsoft WindowsXP, Windows Vista. Windows 7 and Apple Mac OS X
    • Power Supply 12V power supply included with international socket adaptors for all countries
    • Product Warranty 12 months Limited Manufacturer's Warranty
