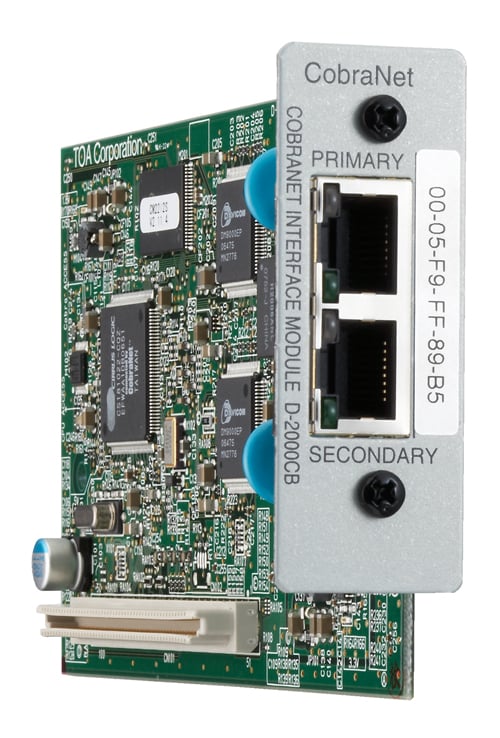

TOA D-2000CB CobraNet In / Out Module

A CobraNet In / Out interface module for use with the TOA D-2000. CobraNet was developed by Cirrus Logic, and is a network protocol utilizing Ethernet networks to perform high-quality multi-channel digital transmission. it allows existing Ethernet equipment such as Cat5 switching hubs.

The D-2000CB Cobranet Interface Module is designed for use with the D-2008SP Digital Mixing Processor Unit. When mounted to the D-2008SP, it allows audio transmission between this D-2008SP and another one. Each function is set by the dedicated setting software on a PC.

Includes:

• Accessory Screw x1

Specifications:

• Network I/F:
  • CobraNet: 100BASE-TX, PRIMARY / SECONDARY 2 system, RJ-45 connector, Enables decentralized installation, Audio transmission only
• Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable to be connected via the specified switching hub - Note: This network should be completely independent of other LAN.
• Number of D-2008SP connection: Max. 4
• Switching hub stage: Max. 7
• Max extend distance: 100m (328.1ft) (connected via a switching hub)
• Input: 16 channels, 20-bit / 24-bit
• Output: 16 channels, 20-bit / 24-bit
• Sampling Frequency: 48kHz
• Finish Panel: Pre-coated steel plate
• Dimensions: 25.5 (W) × 82.5 (H) × 144mm (D) (1" × 3.25" × 5.67") (excluding projection)
• Weight: 100g (0.22lbs)
