Tripp Lite PDUMNV30
Power Distribution Unit, Digitally Monitored, 120V, 30A


Monitored PDU systems support real-time remote monitoring via secure web...
Learn More
Our Price: $467.46
List Price: $667.80
You save 30%!
Write the first review.
Tripp Lite PDUMNV30
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Monitored PDU systems support real-time remote monitoring via secure web, SNMP or Telnet interface and custom notification of user-specified remote conditions via email and SNMP trap. PDU power consumption in amps in displayed locally via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers become overloaded. Advanced configurations support in-rack environmental monitoring with optional ENVIROSENSE temperature/humidity probe and rack access notification for up to 4 SRSWITCH or user supplied contact-closure sensors. Supports real-time monitoring of all reported functions with support for user-specified alarm and notification thresholds. Fully compatible with PowerAlert Network Management System Software, available via FREE download from the Tripp Lite website.

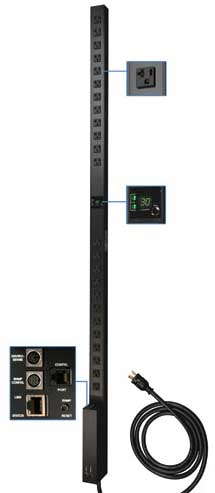

PDUMNV30 monitored 70" OU vertical rack PDU supports 30A peak capacity at 120V (agency de-rated to 24A continuous). Includes attached LS-30P input cordset and 24 5-15/20R outlets. Visual and remote monitoring tracks real time output current level. Supports OU vertical rackmount installation with included mounting brackets. Toolless button-mount installation supported in compatible racks. Included  cord retention brackets keep vital network equipment plugged in and continuously powered.


  • 120V 30A peak capacity (agency de-rated to 24A continuous) monitored power distribution unit with built-in web/network interface in OU vertical rack form factor
  • Included attached L5-30P input plug and 24 5-15R outlets
  • Supports local current metering and remote network monitoring of current, voltage and frequency via built-in web/network monitoring card
  • Remote interface provides data regarding input power conditions and PDU load level via secure network or web browser interface
  • Supports notification and logging of all major power events and user specified alarm thresholds
  • Optional ENVIROSENSE temperature and humidity probe enables remote monitoring of environmental conditions and the ability to report conditions from up to four SRSWITCH or user supplies contact closure sensors
  • DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses
  • 10/100 Mbps auto-sensing allows optimal communication compatibility with your current 10/100 Base-T network
  • Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered
  • Tiered access priviledges allow an administrator and a guest to log into the web browser for monitoring all PDUs
  • Alert notifications via email or SNMP traps give users the added advantage of having an immediate event notification
  • Protocols supported include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP
  • Front panel ammeter displays bank 1, bank 2 and total PDU power consumption (user selectable via push-button switch)
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered
  • 70" vertical rack installation supported with included mounting brackets
  • Toolless mounting supported in button-mount compatible racks
  • Set of two 20A breakers protect two loading segments of 12 outlets each
  • Optional PDUROTATEBRKT enables installation with rear-facing outlets for improved rack cooling and equipment access in button-mount equipped racks



  • Model Type: Monitored
  • PDU Type: Monitored


  • Frequency Compatibility: 50/60Hz
  • Output Nominal Voltage: 120V
  • Overload Protection: Outlets are arranged in two separately breakered 20A banks. 12 upper outlets are protected by the upper circuit breaker; 12 lower outlets are protected by the lower circuit breaker
  • Outlet Quantity/Type: 24 5-15/20R


  • PDU Input Voltage: 100; 120; 127
  • Recommended Electrical Service: 120V
  • Maximum Input Amps (A): 30 (agency de-rated to 24A continuous)
  • Input Connection Type: Attached L5-30P input cable
  • Plug Type: NEMA L5-30P (30A, 120V)
  • PDU Plug Type: NEMA L5-30P
  • Input Cord Length: 10'
  • Voltage Capacity: 120VAC
  • Phase: Single-phase

LEDs Alarms & Switches

  • Switches: Toggle switch prompts local display of power consumption for bank 1, bank 2 and whole-PDU power consumption
  • Front Panel LEDs: Front panel digital displays confirms power availability and PDU output current level in 1 amp increments


  • Shipping Weight: 16.5lbs
  • Unit Dimensions: 70" x 2.2" x 4.25"
  • Shipping Dimensions: 73.5" x 10.8" x 20"
  • Unit Weight: 11.5lbs
  • Style: Vertical rackmount
  • Form Factors Supported: OU vertical rackmount installation supported including mounting brackets; supports toolless mounting in  button-mount compatible racks
  • PDU Form Factor: Vertical (OU)


  • Relative Humidity: 0-95" non-condensing


  • SNMP Compatibility: Pre-installed SNMPWEBCARD provides remote monitoring via web, telnet and SNMP management systems


  • Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant


  • Product Warranty Period (U.S., Canada & Puerto Rico): 2 year manufacturer's limited warranty
