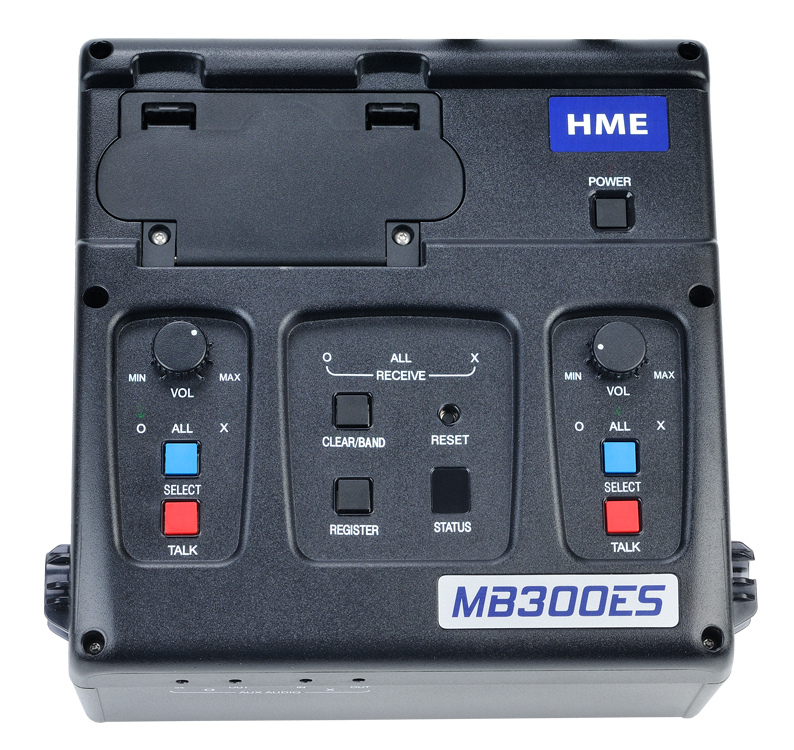

HM Electronics MB300ES
2-Channel Mobile Base Station

OUR PART #:  MB300ES-CZ11467

HM Electronics MB300ES Features: Triple diversity design Transmits the audio signal twice, at different times and frequencies...
Learn More
Our Price: $2,844.00
List Price: $3,160.00
You save 10%!
Write the first review.
HM Electronics MB300ES
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

HM Electronics MB300ES Features:

  • Triple diversity design
    • Transmits the audio signal twice, at different times and frequencies, and selects the strongest signal from two different antennas for uninterrupted communication.
  • Flexible power options
    • Enable the MB300 Base Station to operate on 100-240 VAC, 12-14 VDC, 1.5V “AA” batteries or an optional rechargeable BAT850 battery.
  • Simple system expansion
    • Enables connection of multiple MB300 Base Stations to accommodate expanding production crew requirements, with a standard data cable.
  • Auxiliary Input and Output
    • Ten-pin terminal strip connector for easy connection to four-wire intercom systems.
    • External interface required to connect into two-wire systems.
  • Dedicated channel relays
    • Each channel has a dedicated relay.
    • Remote users can activate either one or both simultaneously.
  • Fast, easy set-up for strategic relocation
    • Highly portable and very quick to set up and operate.
  • Compatible configuration
    • Easily configured to operate with almost any base radio or four-wire intercom.
    • Available with any combination of COMMUNICATOR®s: BP300 Beltpack or the WH300 All-in-One Wireless Headset.

HM Electronics MB300ES Specifications:

  • System Specifications
    • Frequency Range: All (2400 – 2483.5 MHz)
      • Low (2401.92 to 2439.936 MHz)
      • High Band (2443.392 to 2481.408 MHz
    • Frequency Response: 200 Hz to 3.5 KHz
    • Security: 64-Bit Encryption
    • Temperature Range: -4 to131°F (-20 to 55°C) Typ.
    • Transmit/Receive: Frequency-Hopping, Spread Spectrum (FHSS)
    • Transmit Power: 100mw Burst
    • Modulation Type: Gaussian Filtered FSK, TDMA
    • Frequency Stability: 13 ppm
    • Harmonics/Spurious: Exceeds FCC and ETSI Specifications Over Temperature
    • RF Sensitivity: <-90dBm w 10-3 BER
    • System Distortion: <2%
    • Dynamic Range: -90dBm to –20dBm
    • FCC License: None Required (Approved for Worldwide Use)
    • FCC Acceptance: Part 15
  • Base Station Specifications
    • Antenna Type: External, Dual Diversity ½-Wave Dipole, R-TNC Connector (x2)
    • Power Requirements: 100–240VAC, 50-60Hz or 12-14VDC or Six 1.5V AA Batteries or
                                                                          BAT850 Rechargeable Battery (Optional)
    • Size: 8” x 8” x 3.5” (20.32cm x 20.32cm x 8.89cm)
    • Weight: 2.75 lb. (1.25kg) with Battery
    • AUX I/O: 600 O Balanced, with Level Adjustment
    • Headset Connector (x2): Mini-DIN
    • Headset Output: 200mW into 32W
    • Relay: 8-Pin Phoenix – NC,COM,NO,GND (x2)
                 2A @ 30VDC
