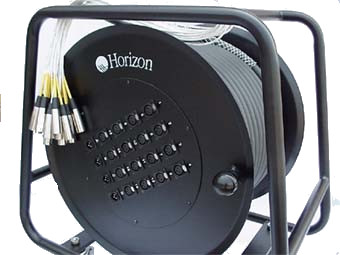

RapcoHorizon Music REEL16X4-100
100' 16 x 4 XLR Snake on Reel

OUR PART #:  REEL16X4-100

One of the best audio snakes on the market. Fan to Snake REEL. The Snake REEL has 16 XLR Female connectors with locking tabs and four returns (XLR Male or TRS).
Learn More
Our Price: $686.09
List Price: $1,086.00
You save 37%!
Write the first review.
RapcoHorizon Music REEL16X4-100
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

One of the best audio snakes on the market. Fan to Snake REEL. The Snake REEL has 16 XLR Female connectors with locking tabs and four returns (XLR Male or TRS). Fan has 16 XLR Male Connectors and four returns (XLR Female or TRS).  Constructed with CL-2 rated cable, each channel is 24 gauge, individually shielded, jacketed and numbered. Heavy duty wire mesh strain relief on both the box and the fan end. Meets NEC Code for permanent installation. The overall jacket is Matte PVC. O. D. is .755 inch

Features:

  • The Professional Snake Reel features Horizon's 16 gauge steel construction.
  • Rubber wheels with locks make for easy portability.

Specifications:

  • Channels: 16
  • Returns: 4
  • Stranding = 7/32 Awg
  • Cap. Between Cond. = 25 pf/ft. @ 1kHz
  • Cond. to Shield = 45 pf/ft. @ 1kHz
  • Characteristic Impedance = 60 ohms nominal
  • Resistance @ 20 C = 24.5 ohms/1000 ft.
