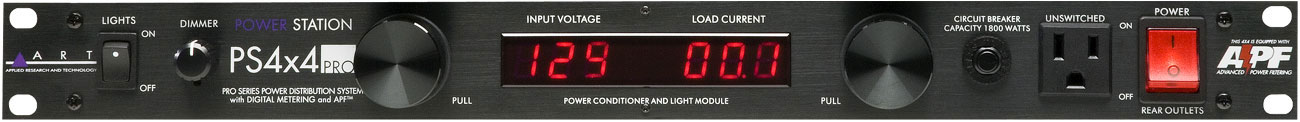

ART PS4×4 PRO Dual LED Meter Rack-Mount Power Distribution System with APF

Built upon the foundation of the popular PS4×4 models, the PS4×4 PRO, a member of ART's PRO SERIES lineup, is likewise a durably-constructed, reliable power conditioner that's great for use in a variety of applications. Wherever a power management system is required, the 4×4 PRO models provide the surge protection you need to keep your rack safe from unwanted disruption.

All PRO SERIES units include an additional internal discrete module called APF™ (Advanced Power Filtering), which filters out digital and dimmer hash as well as any high frequency noise above the audio range. Some other off-the-shelf add-on modules can saturate and lose their filtering effectiveness as the load increases, but by using a high-power discrete design ART was able to bring in a filter that stays effective over the full operating range.

By using both Common Mode and Differential Mode topologies in series for the filter design ART has built this unit to be capable of blocking virtually all of the unwanted noise that is between the AC line and ground, and also the 2 sides of the AC line. This has the additional benefit of reducing ground loop problems in your system. High frequency noise currents in particular are highly attenuated in both directions so that any line noise that could be generated by one of your components is not allowed to get back into your main A.C. wiring so if you use a number of PRO SERIES Power Conditioners in your setup, you can distribute and isolate the noisy components from the sensitive components in your system. Additionally, any signals above 10kHz are filtered from the line with over 40 dB of attenuation above 100 kHz and beyond.

Every PRO SERIES power conditioner is designed with a power capacity of 1800 Watts, surge/spike protection, APF with EMI and RFI filtering, front-mounted unswitched power outlet and an adjustable rear-mounted gooseneck light source for bright illumination behind the rack. The spacing and alignment of the rear outlets to accommodate various size power plugs and AC adapters.

Features

• APF - Advanced Power Filtering
• Pull Out Light Pipes with AutoOff and Dimmer
• Easy to read LED Input Voltage and Current Metering
• Power Capacity of 1800 Watts
• Surge and Spike Protection
• EMI and RFI Filtering
• (8) Rear Outlets with Power Adapter Friendly Positioning
• One Front-mounted Unswitched Power Outlet
• Rear-mounted Gooseneck Light Source

Specifications

• Power Capacity: 1800 Watts
• Circuit Breaker: 15 Amp
• Power Outlets: Eight Rear Outlets
• Power Switch: Front Location - On/Off
• Power Switch Illumination: Yes - In "On" Position
• Circuit Breaker: Front Location
• Filtering: EMI, RFI, Common Mode Passive
• Differential Mode in Series
• Protection Circuit: Surge and Spike Protection
• Construction: All-Steel Chassis
• Light Pipes: (SP, PS only) 2 Front Pull-Out, Shock Mounted
• Metering: (SP, PS only) Input Voltage
• Metering: (PS only) Current Voltage
• Note: further information can be found within the items located under the "Documentation" tab above.
