Blackmagic Design ATEM 2 M/E Broadcast Panel
Control Panel for ATEM Live Production Switchers

OUR PART #:  ATEM-2-ME-BROADPANEL

Call for price! Not available online.
List Price: $14,995.00

Similar Products
Blackmagic Design's ATEM 2 M/E Broadcast Panel has the power for the most complex live broadcast events and it’s perfect when you have the space for a large panel and need all the control at your fingertips. The ATEM 2 M/E Broadcast Panel features an amazing design that not only looks incredible, but perfectly positions all controls just where you need them for the ultimate creativity on complex multi layer live production. The ATEM 2 M/E Broadcast Panel connects via ethernet and includes loop thru for your media management computer.

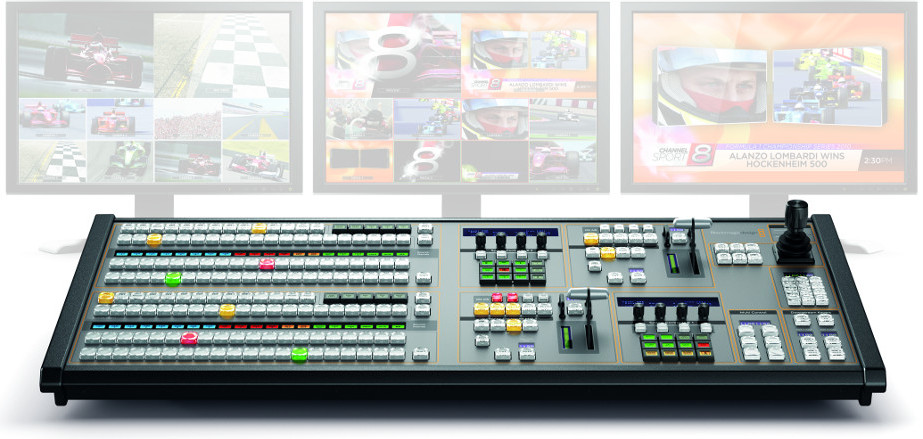

NOTE:  Image shown is for illustrative purposes.  Video monitors are NOT INCLUDED, and are SOLD SEPARATELY.  Contact your Full Compass Sales Professional for more information.

Blackmagic Design ATEM 2 M/E Broadcast Panel Specifications:

Connections

  • Ethernet 10/100/1000 BaseT with loop output for additional control panels or computers.
  • Software Updates 1 x USB for firmware updates

Extras

  • Direct Cross Points: 20
  • Shifted Cross Points: 40
  • Crosspoint Button Type: Tri-Color LED
  • Crosspoint Label: High Contrast RGB Bitmap
  • Next Transition Selectors: BKG, Key1 - Key2 (per M/E)
  • On-Air Indicator: Yes
  • DSK Transition Selectors: Auto, Cut, Tie/Pvw
  • Preview Transition: Yes
  • Transition Rate Displays: Yes
  • Menu Control: LCD Bitmap Buttons
  • Fader Bar: 2
  • 3 Axis Joystick; Yes
  • Numeric Keypad: Yes
  • Operating System: Aerospace Certified Embedded OS

Dimensions

  • Width: 37.27" (947mm)
  • Height: 4.8" (120mm)
  • Depth: 14.14" (359mm)
  • Weight: 33.6 lbs. (15.25 kg)
  • Cutout Width: 36.27" (921mm)
  • Cutout Depth: 16.67" (423mm)

Power

  • Redundant Power: Yes
  • Input Voltage: 12V
  • Power Usage: 75 Watts
