Atlas IED M1000R-W Round Enclosure 8" Masking Speaker System, White

OUR PART #: M1000R-W MFR #: M1000R-W

Copied to clipboard

The M1000R-W from Atlas Sound is a perfect solution for contemporary office spaces with open ceiling designs where sound masking is used to enhance speech privacy. ...Read more

Atlas IED M1000R-W Round Enclosure 8" Masking Speaker System, White Image 1
Atlas IED M1000R-W Round Enclosure 8" Masking Speaker System, White
Our Price: $100.99
List Price: $123.99
You save 19%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

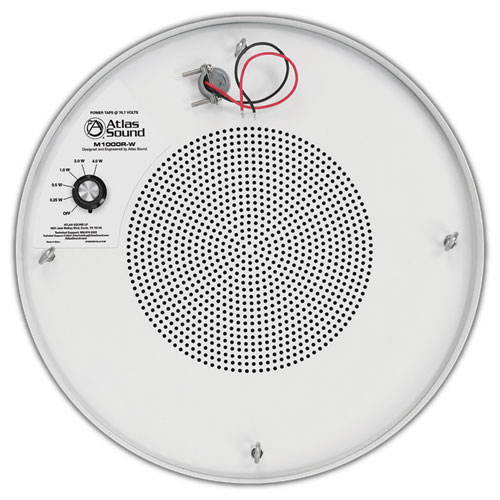

The M1000R-W from Atlas Sound is a perfect solution for contemporary office spaces with open ceiling designs where sound masking is used to enhance speech privacy. The sleek round design and low gloss white finish will blend in nicely with painted ductwork, lighting and other devices suspended overhead. A high efficient 8" paper cone transducer coupled with a low insertion loss 70.7V transformer are factory assembled into the 382 in3 round enclosure. System level tuning is easily achieved via an external tap selector switch that includes settings for .25, .5, 1, 2 & 4 watts plus an OFF position. Installation is made easy via the included 78" (2m) suspension chain system that allows quick mounting and height adjustment of the M1000R-W. An integral wire strain relief strategically located on the top of the enclosure allows for secure speaker cable termination.

Atlas Sound M1000R-W Features:

  • Sleek, round appearance designed for mounting in open plenum areas where speakers may be visible
  • Balanced enclosure design to ensure level orientation when suspended (78" (2m) suspension chain included)
  • Fully assembled package includes 8" transducer with high quality line matching transformer
  • 25 to 4 watt (@70.7V) power selection (plus OFF) via external switch
  • 382in3 (6.26L) enclosure volume for accurate low frequency masking spectrum reproduction
  • Strain relief to facilitate input termination
  • Tested and approved to UL2043

Atlas Sound M1000R-W Specifications:

  • Loudspeaker Type: 8" Dual Cone
  • Magnet Size: 10oz (260g)
  • Transformer Taps: .25, .5, 1, 2, & 4 Watts, Plus OFF
  • Sound Dispersion: Upward
  • Enclosure Volume: 382in³ (6.26 ltrs.)
  • Height: 3.937" (100mm)
  • Outside Diameter: 12.992" (330mm)
  • Weight: 9.2lbs (4.17kg)
