Middle Atlantic Products DWR-18-22PD

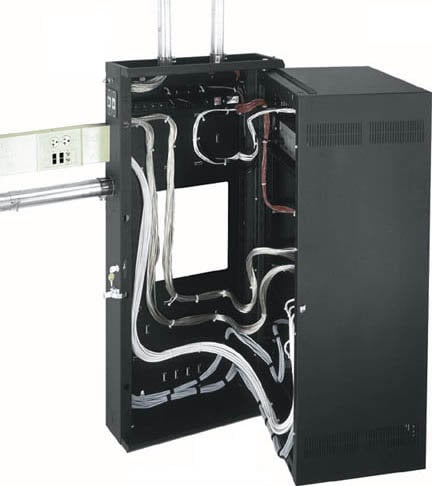

18 RU, 31.5" H Sectional Wall Rack with 22" Depth, Plexi Door

OUR PART #:  DWR-18-22PD

Redesigned sectional wall-mount rack with enhanced cable management for larger systems.
Learn More
Our Price: $894.00
List Price: $1,192.00
You save 25%!
Write the first review.
Middle Atlantic Products DWR-18-22PD
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Redesigned sectional wall-mount rack with enhanced cable management for larger systems.


  • UL Listed in the US and Canada
  • Tool-Free Quick-Mount™ system allows for easy, one-person mounting of thecenter section to the backpan
  • Welded construction provides up to a 300 lb. weight capacity (depending onmodel)
  • Fully adjustable 1/8", 10-32 threaded rackrail
  • Abundant built-in cable lacing points in interior
  • 0.5", 0.75", 1", 1.5", 2" and 3" electrical knockouts and 5/8” UHF/VHFantenna knockouts on top & bottom, easily removable for cable pass-through
  • 12.5" x 12.5" laser knockout opening in the backpan for electricalpull-box
  • Abundant Velcro and internal cable tie points
  • Adjustable front rackrail (rear rackrail optional)
  • Center section hinges for left or right opening accessories
  • 2" knockouts, 4" knockouts for Wiremold® 4000 Series raceways, andknockouts for UCP series universal connector panels on side
  • Front-mounted Zero Clearance Latch saves valuable wall space by allowingwall racks to be placed side-by-side, in a corner, or wherever side clearanceis an issue.
  • Backpan includes raised mounting embosses to mount power and otheraccessories


  • Depth: 22" (20" Useable)
  • Racking Height: 31.5" (18-Space)
  • Weight Capacity: 250 lbs.
  • Overall Height: 35-1/16"
