Galaxy Audio AS-WSS11T
Wireless Personal Monitor, AC Powered

OUR PART #:  AS-WSS11T

The AS-WSS11T will transmit an audio signal from one location to another wirelessly.  Whether you need to get audio outside or to an overflow room, the AS-WSS11T can help.
Learn More
Our Price: $399.99
List Price: $614.98
You save 35%!
Write the first review.
Galaxy Audio AS-WSS11T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The AS-WSS11T will transmit an audio signal from one location to another wirelessly.  Whether you need to get audio outside or to an overflow room, the AS-WSS11T can help.  Both transmitter and receiver are rack mountable.

  • 120 selectable channels
  • 300 foot range
  • Choose frequency D or L
  • AC operated (power supply included)

System Includes: one AS-1100T transmitter and one TRCR recevier.  Each unit comes with rackmount kit and power supply.  120 Selectable channels.  Choose frequency D or L.

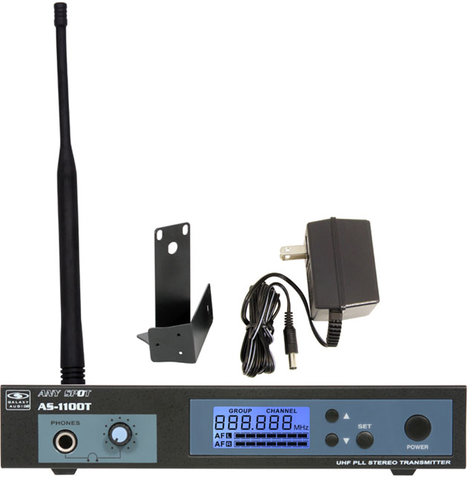

AS-1100T (Transmitter)

Features:

  • Transmits in Stereo or Mono
  • Light Up LCD Display
  • Channel Number and Frequency
  • 120 Selectable Channels
  • XLR/¼" Combo Input
  • AF L/R Indicator
  • RF Output
  • 10 mW

Specifications:

  • Max Audio input level: +6dBV
  • Gain Adjustment Range: 40dB
  • Input Impedance: 100K?
  • Dimensions: 1.5" x 8.3" x 3.78" (38mm H x 212mm W x 96mm D)
  • Weight: 21oz. (605 g)
  • Power Requirements: 12-18 V dc at 300mA supplied by external power supply
  • XLR input: Impedance balanced
  • Pin1: Ground (cable shield)
  • Pin 2: Audio
  • Pin 3: No Audio

TRCR (Receiver)

Specifications:

  • Audio Output Level: (+/-30 Khz deviation, 1KHz tone)
  • XLR connector (into 600 load) -12dBV
  • ¼" connector (into 3K load) -18dBV
  • Output Impedance: XLR connector 200
  • ¼" connector 1K
  • XLR output: Impedance balanced
  • Pin1: Ground (cable shield)
  • Pin2: Audio
  • Pin3: No Audio
  • Sensitivity: -94dBm for 30dB
  • Image Rejection: >80dB
  • Dimensions: 1.7" x 8.3" x 6.3" (44mm H x 212mm W x 160mm D)
  • Weight: 32.5oz (920g)
  • Power Requirements: 12-18V DC at 400mA,
  • Supplied by external power supply.
