Grundorf AC-12-U Altar Clarity Series 12" 2-Way Loudspeaker with U-Bracket

OUR PART #: AC-12-U

Write the First Review
Copied to clipboard

The Grundorf AC-12-U Altar Clarity Series of loudspeakers provides exceptional performance and versatility for house of worship live sound reproduction. ...Read more

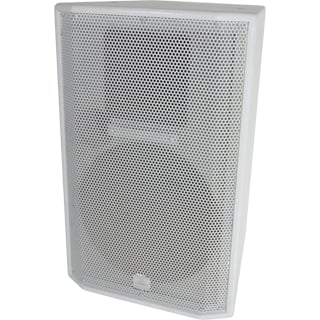

Grundorf AC-12-U Altar Clarity Series 12" 2-Way Loudspeaker With U-Bracket Image 1
Grundorf AC-12-U Altar Clarity Series 12" 2-Way Loudspeaker With U-Bracket
More Grundorf products
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Grundorf AC-12-U Altar Clarity Series of loudspeakers provides exceptional performance and versatility for house of worship live sound reproduction. Each model is equipped with component concealing grilles for visual aesthetics. True, two-pole crossovers and pattern-controlled horns are used for accurate and smooth sounding musical performances and the spoken word. Vast assortments of model choices are available to fit every application.

Grundorf AC-12 -U Specifications:

  • Power Handling: 200 watts
  • Frequency Response: 50 Hz - 18 kHz
  • Sensitivity: 101 dB SPL
  • Nominal Impedance: 8 ohms
  • Dispersion:
    • Horizontal 80 degrees
    • Vertical 40 degrees
  • Components:
    • LF - 12" cone driver
    • HF - 1" compression driver
  • Crossover Frequency: 2.8 kHz
  • Enclosure Type: Trapezoidal 15 degrees
  • Grille: Cloth covered, powder-coated, perforated steel
  • Connectors: 5-way Binder
  • Dimensions: 23.75" H x 15.50" W x 15.75" D
  • Weight: 38 lbs
