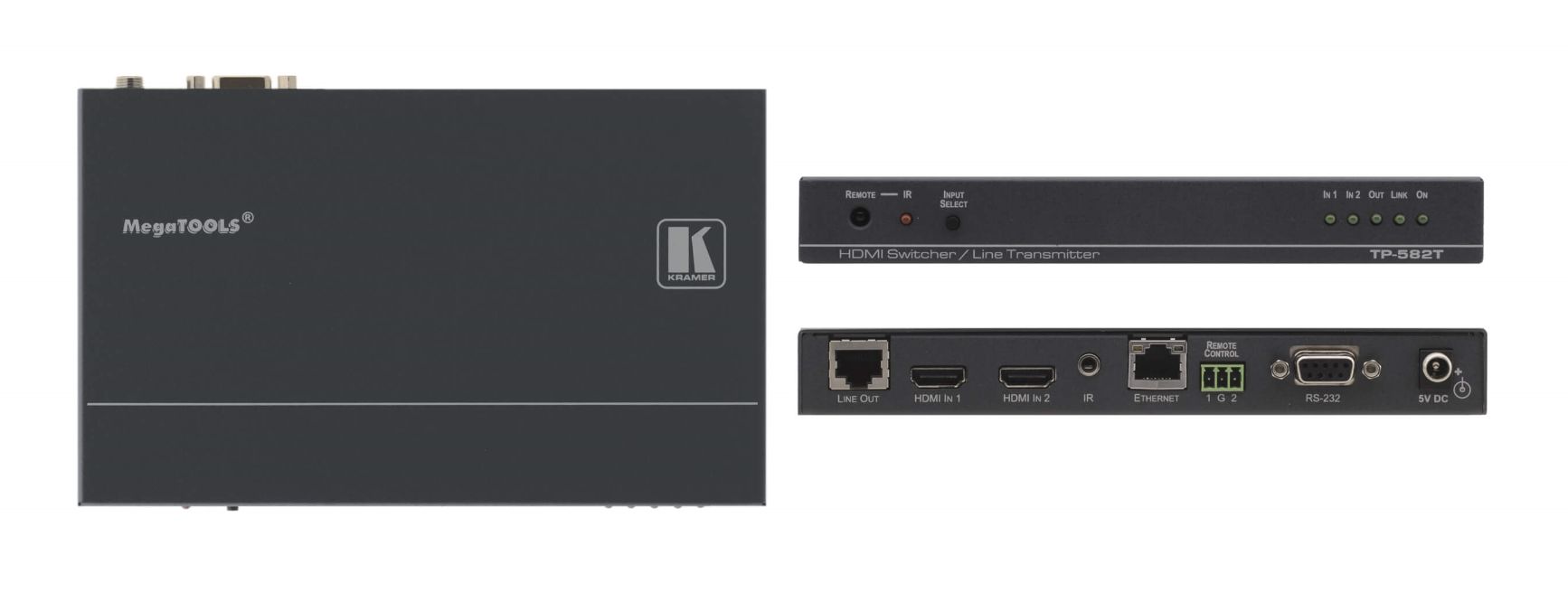

Kramer TP-582T
2x1 HDMI Plus Bidirectional RS-232, Ethernet & IR over Twisted Pair Switcher/Transmitter

OUR PART #:  TP-582T

The TP-582T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals.
Learn More
Our Price: $556.00
List Price: $695.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-582T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The TP-582T is a high-quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. The TP-582T selects one of two HDMI inputs, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The TP-582R converts the twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK® audio outputs.

Kramer TP-582T Features:

  • Max Data Rate - 2.25Gbps
  • HDTV Compatible
  • HDCP Compliance
  • HDMI Support - HDMI (V.1.4 with Deep Color,x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD,CEC).
  • 3D Pass-Through
  • EDID Pass Thru - Passes EDID/HDCP signals from source to display.
  • Bidirectional RS-232 Interface - Commands and data can flow in both directions via theRS-232 interface, allowing status requests and control of the destination unit.
  • Ethernet Interface - Passes 100 BaseT.
  • System Range - Up to 100m (330ft).
  • Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, useKramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may notreach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Control - Front panel
  • Indicators- Status LEDs for input selection, output, link and power.
  • Compact MegaTOOLS - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter.

Kramer TP-582T Specifications:

  • Inputs: 2 HDM Iconnectors, 1 IR on a 3.5mm mini jack, 1 Ethernet 100BaseT on an RJ-45connector, 1 RS-232 on a 9-pin D-sub connector, 1 remote contact closure on a terminal block connector
  • Output: 1 RJ-45connector
  • Bandwidth: Supports up to 2.25Gbps bandwidth per graphic channel
  • Compliance with HDMI Standard: Supports HDMI and HDCP
  • Dimensions: 7.4" x4.5" x 1.0"
