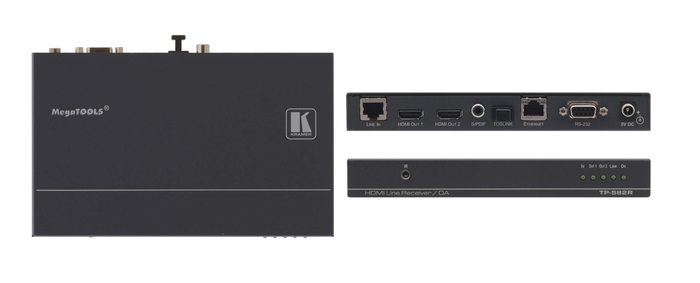

Kramer TP-582R
1:2 HDMI Plus Bidirectional RS-232, Ethernet & IR over Twisted Pair Receiver

OUR PART #:  TP-582R

The TP-582R is a high-quality twisted pair receiver for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals.
Learn More
Our Price: $524.00
List Price: $655.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer TP-582R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TP-582R is a high-quality twisted pair receiver for HDMI, Ethernet 100BaseT, bidirectional RS-232 and IR signals. The TP-582T selects one of two HDMI inputs, and converts it with the Ethernet 100BaseT, RS-232 and IR input signals to a twisted pair signal. The TP-582R converts the twisted pair signal back to Ethernet 100BaseT, RS-232, IR and two HDMI outputs, and de-embeds the audio to S/PDIF and TOSLINK® audio outputs.

Kramer TP-582R Features:

  • Max Data Rate - 2.25Gbps
  • HDTV Compatible
  • HDCP Compliance
  • HDMI Support - HDMI (V.1.4 with Deep Color,x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD,CEC)
  • 3D Pass-Through
  • EDID Pass Thru - Passes EDID/HDCP signals from source to display
  • Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit
  • Ethernet Interface - Passes 100BaseT
  • System Range - Up to 100m(330ft)
  • Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat723 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground
  • Control - Frontpanel
  • Indicators- Status LEDs for input selection, output, link and power
  • Compact MegaTOOLS - 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-T2B universal rack adapter

Kramer TP-582R Specifications:

  • Inputs: 1 RJ-45 connector
  • Outputs:2 HDMI connectors, 1 IR on a 3.5mm mini jack, 1 Ethernet 100 BaseT on an RJ-45connector, 1 RS-232 on a 9-pin D-sub connector, 1 TOSLINK® optical audio,1S/PDIF in an RCA connector.
  • Bandwidth: Supports upto 2.25Gbps bandwidth per graphic channel.
  • Compliance with HDMIStandard: Supports HDMI andHDCP.
  • Power Source: 5V DC,1.55A.
  • Dimensions: 7.4" x4.5" x 1.0"
