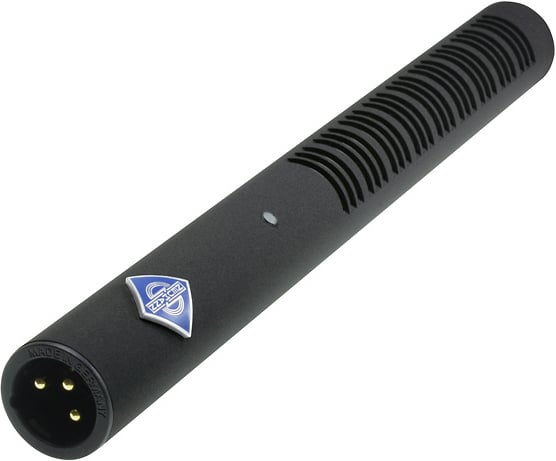

Neumann KMR 81 D
9" Digital Short Shotgun Microphone in Nextel Black Finish with Case and Windscreen

OUR PART #:  KMR81D

The KMR 81 D is the transition of the well-established KMR 81 i shotgun microphone into the digital domain.
Learn More
Our Price: $1,599.95
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neumann KMR 81 D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The KMR 81 D is the transition of the well-established KMR 81 i shotgun microphone into the digital domain.  It provides all of the features of its analog counterpart, which made it a favorite of sound engineers in movie and documentary productions.  Additionally it offers the advantages of the digital circuit technology, such as extended dynamic range, a more robust operation (EMC safe) and the avoidance of clipping as a result of the integrated peak limiter/compressor.

The settings for all functions can be recalled, set and stored in the microphone by using one of the digital microphone interfaces.

Neumann KMR 81 D Features:

  • Free of coloration
  • Interference tube microphone with shotgun directional characteristic
  • Interference/pressure-gradient transducer
  • High lateral and back (off-axis) attenuation
  • 90°-recording angle
  • Extensive accessories for outdoor use
  • Light weight: 90 g
  • The legendary Neumann sound in the digital realm. Pure Neumann capsule sound
  • The satisfaction of recording the uncolored original, with no "bottlenecks" between the capsule and the recording system
  • The guarantee of having one of the best A/D converters available
  • Anti-clipping processing ensures handling safety, and reduces stress
  • Reduced time requirements and personnel costs, particularly due to faster post production processing
  • Lower investment costs, since separate A/D converters and preamps are nolonger needed. This also means space and weight savings (e.g. in the OBvan)

Neumann KMR 81 D Specifications:

  • Acoustic transducer: Interference transducer
  • Directional characteristic: Supercardioid/lobe
  • Frequency response: 20 Hz - 20 kHz
  • Free-field sensitivity (at 1 kHz): –36 dBFS
  • Equivalent noise level, CCIR*: 21 dB
  • Equivalent noise level, A-weighted*: 9 dB-A
  • Signal-to-noise ratio**, CCIR*: 73 dB
  • Signal-to-noise ratio**, A-weighted*: 85 dB
  • Maximum SPL at 0 dBFS: 123 dB SPL
  • Dynamic range, A-weighted (D-01 only): 114 dB
  • Preset:
    • Sampling rates: 48 kHz
    • Gain: 10 dB
    • Compressor on, Attack time 100 ms, Release time 0.5 s, Threshold –10 dBFS, Ratio 2:1
  • Supply voltage range: +7 V to +10.5 V
  • Current consumption: max. 150 mA
  • Weight: approx. 90 g, Diameter: 42 mm, Length: 212 mm
  • Interface: AES42
  • Remote controlled functions:
    • Polar pattern (D-01 only)
    • Low-cut: flat, 40, 80, 160 Hz
    • Pre-attenuation: 0 , -6, -12, -18 dB
    • Gain: 0...63 dB in 1 dB steps, clickless
    • Test signal: 1 kHz, pink noise, white noise
    • Parametric compressor/limiter (incl. de-esser function)
    • Independent peak limiter avoiding any clipping
    • Switch functions: soft muting, phase reverse, signal lights
    • Signal lights: red (D-01 only) and blue LEDs
    • System functions, firmware download
  • A/D conversion: Neumann process (patented), 28-bit internal word length
  • Digital signal processing: Fixed-point, variable internal word length 28bits to 60 bits
  • Synchronization:
    • Asynchronous operation (free-running, AES42 - Mode 1), basic frequency accuracy: ± 25 ppm
    • Synchronous operation (AES42 - Mode 2), pulling range: Min. ± 100 ppm
  • Power supply (phantom power complying with AES42)
  • Output: XLR3M, 24 bits as per AES/EBU (AES3)

NOTE: All data with respekt to 0 dB pre-attenuation and 0 dB gain.
*According to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
**re 94 dBSPL
