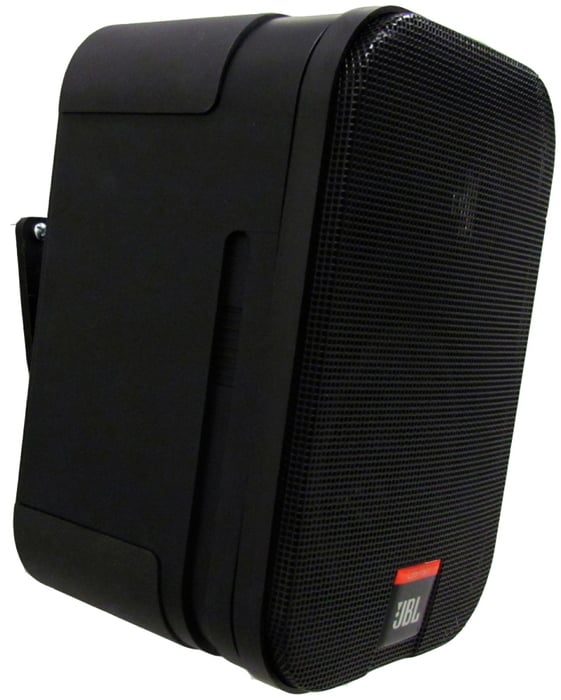

JBL CSS-1S/T
Compact Two-Way Surface Mount Dual Voltage Loudspeaker

OUR PART #:  CSS-1S/T

The JBL CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode.
Learn More
Our Price: $104.00
List Price: $130.00
You save 20%!
Write the first review.

This product must be purchased in multiples of 2

JBL CSS-1S/T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The JBL CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.

JBL CSS-1S/T Features:

  • 10 Watt Multi-Tap Transformer for 100V or 70VDistributed Speaker Lines
  • 8 Ohm Direct Setting
  • Included Wall-Mounting Bracket
  • Professional Drivers and Network

JBL CSS-1S/T Specifications:

  • Frequency Range (-10 dB): 85 Hz – 18 kHz
  • Frequency Response (+/- 3 dB): 120 Hz – 16 kHz
  • Power Capacity: 60 Watts
  • Sensitivity: 86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
  • Maximum SPL: 106 dB at 8 Ohm Direct setting; 96 dB at 10W setting
  • Nominal Coverage: 120ºH x 120ºV
  • Directivity Factor (Q): 6.2
  • Directivity Index (DI): 7.9 dB
  • Nominal Impedance: 8 ohms (in 8O DIRECT mode, selectable on back panel)
  • Transformer Taps: 10 W, 5 W (& 2.5W @ 70V)
  • Crossover Frequency: 4.3 kHz
  • Transducers
    • LF Driver: 135 mm (5.25 in) low frequency driver
    • HF Driver: 19 mm (0.75 in) polycarbonate dome tweeter
  • Input Connectors: Spring-loaded terminals
  • Enclosure
    • Enclosure Material: Polypropylene Structural Foam
  • Color: Black
  • Dimensions: 229 mm x 159 mm x 143 mm (9.0 in x 6.3 in x 5.6 in)
  • Net Weight (each): 2.0 kg (4.5 lb)
  • Shipping Weight (pair): 4.8 kg (10.5 lb)
  • Included Accessories: Wall-mounting bracket assembly
