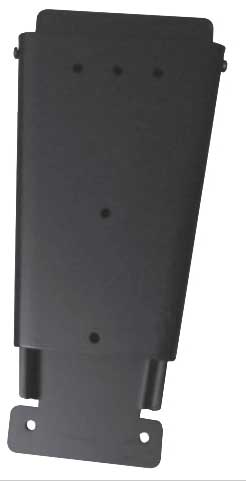

JBL MTC-CBT-FM2
Flush-Mount Wall Brackets for CBT Speakers

OUR PART #:  MTC-CBT-FM2

The JBL MTC-CBT-FM2 is designed to be used with the CBT 70J-1 and CBT 70J-1/70JE-1 array.
Learn More
Our Price: $55.00
Write the first review.

This product must be purchased in multiples of 2

JBL MTC-CBT-FM2
Qty:
In Stock
Related Products

The JBL MTC-CBT-FM2 is designed to be used with the CBT 70J-1 and CBT 70J-1/70JE-1 array.

JBL MTC-CBT-FM2 Features:

  • Provides Low-Profile, Close-to-Wall Mounting Brackets for JBL CBT Line Array Column Speakers
  • Drop-In Ease of Assembly with Set Screw(s) for Secure Installation
  • ROHS-Compliant Zinc Plating for Weather Resistance
  • For Mounting Speaker in Typical Vertical Orientation (not for Horizontal Orientation)
  • Use one or two for a single cabinet. Use one on each cabinet for 2 cabinet arrays
  • FM2 is for use with CBT 70J-1 and CBT 70J-1/70JE-1 array
  • Loudspeaker-Mount Section of bracket attaches to the included insert points on the back panel of the speaker (using the M6x15 mm bolts on FM2, and M8x20 mm bolts for FM3 flat washers & lock washers that come with the speaker). Mounting points are at 254 mm x 70 mm (10 x 2-3/4 inch) spacing
  • Wall-Mount Section has 3 aligned holes vertically; 3 aligned holes horizontally.
  • Loudspeaker-Mount Section drops easily into Wall-Mount Section. Set screw holds securely.
  • 3.5 mm thick (10-Gauge AWG) Metal
  • Bracket assembly spaces back of speaker within
