16x 2" 325W Line Array Column Loudspeaker in White


The JBL CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency...
Learn More
Our Price: $736.00
List Price: $920.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


In Stock

Similar Products

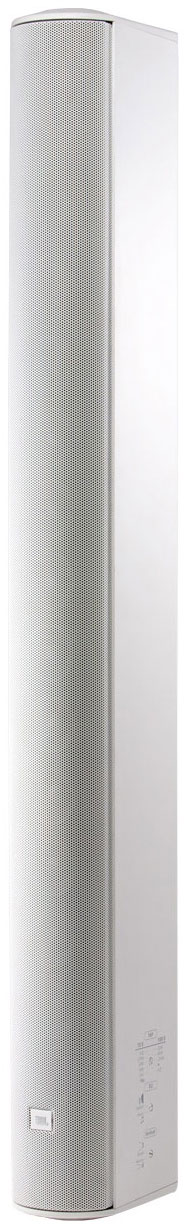

The JBL CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

JBL CBT 100LA-1 Features:

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Swivel (pan)/tilt wall bracket included.
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.

JBL CBT 100LA-1 Specifications:

  • Components:   Sixteen 50 mm (2") Full-Range
  • Frequency Range (-10 dB):   80 Hz – 20 kHz
  • Vertical Coverage:
    • Narrow Mode: 15° (2 kHz - 16 kHz) (±10°)
    • Broad Mode: 40° (1 kHz -16 kHz) (±10°)
  • Horizontal Coverage: 150° (ave, 1 kHz – 4 kHz, ±20°)
  • Sensitivity (2.83V@ 1m):
    • Narrow:
      • Speech Mode: 96 dB (2 kHz - 14 kHz )
      • Music Mode: 93 dB (300 Hz - 18 kHz)
    • Broad:
      • Speech Mode: 93 dB (2 kHz - 14kHz)
      • Music Mode: 90 dB (300 Hz - 18 kHz)
  • Nominal Impedance: 8 ohms (in Thru mode)
  • Power Capacity (8 ohmsetting):
    • 325 W (1300Wpeak), 2 hrs
    • 200 W (800W peak), 100 hrs
  • Max SPL:
    • Narrow:
      • Speech Mode: 121 dB cont ave (127 peak)
      • Music Mode: 118 dB cont ave (124 peak)
    • Broad:
      • Speech Mode: 118 dB cont ave (124 peak)
      • Music Mode: 115 dB cont ave (121 peak)
  • 70V/100V Transformer Taps:  120W, 60W, 30W (15W at 70V only), and 8 Ohms thru, via switch
  • Enclosure:  Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Outdoor Capability:  IP-54 rated, per IEC529. UV, moisture and salt-spray resistant
  • Insert Points: 18 M6 insert points on back panel.
  • Mounting: Included swivel (pan)/tilt wall bracketprovides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25" x 2") pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
  • Dimensions: 39.4" H x 3.8" W x 6" D (1000 x 98.5 x 153 mm)
  • Net Weight: 15.8 lbs (7.2 kg)
  • Included Accessories: Swivel (pan) / tilt wall bracket
  • Optional Accessories:
    • MTC-PC2 terminal panel cover
    • MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
    • MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
