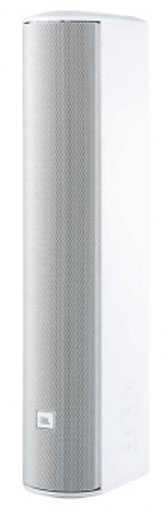

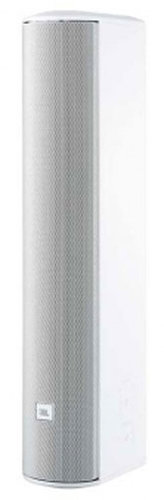

JBL CBT 50LA-1
600W 8x 2" Line Array Column Loudspeaker in White

OUR PART #:  CBT50LA-1-WHITE

The JBL CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control...
Learn More
Our Price: $404.00
List Price: $505.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL CBT 50LA-1
Qty:
In Stock

Similar Products
The JBL CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

JBL CBT 50LA-1 Features:

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection
  • Built-in 70V/100V transformer, plus 8 ohm direct capability.
  • Swivel (pan) / tilt wall bracket included

JBL CBT 50LA-1 Specifications:

  • Components: Eight 50 mm (2") Full-Range
  • Frequency Range (-10 dB): 80 Hz – 20 kHz
  • Coverage Pattern:
    • Vertical: 20° (1.5 kHz - 16kHz, ±10°)
    • Horizontal: 150° (ave, 1 kHz – 4 kHz, ±20°)
  • Sensitivity (2.83V@ 1m):
    • 93 dB (speech mode, 2 kHz - 14 kHz)
    • 89 dB (music mode, 300 Hz - 18 kHz)
  • Nominal Impedance: 8 ohms
  • Power Capacity (8 ohm setting):
    • 150W (600W peak), 2 hrs
    • 100W (400W peak), 100 hrs
  • Max SPL:
    • Speech mode: 115 dB cont ave (121 peak)
    • Music mode: 111 dB cont ave (117 peak)
  • 70V/100V Transformer Taps: 60W, 30W, 15W, (7.5W at 70V only), and 8 Ohms thru, via switch
  • Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Outdoor Capability: IP-54 rated, per IEC529. UV, moisture and salt-spray resistant
  • Insert Points: Ten M6 insert points on back panel.
  • Mounting: Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range.  Ten threaded mounting points locatedon back panel conform to industry standard rectangular 108 x 51 mm (4.25" x 2") pattern for OmniMount® 30.0 and other compatible third-party brackets.  Threaded mounting points can be utilized for suspension.
  • Dimensions: 20.8" H x 3.9" W x 6" D (528 x 99 x153 mm)
  • Net Weight: 9 lbs (4.1 kg)
  • Included Accessories: Swivel (pan) / tilt wall bracket
  • Optional Accessories:
    • MTC-PC2 terminal panel cover
    • MTC-CBT-FM1 flush-mount low-profile wall-mount bracket
    • MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm speaker stand
