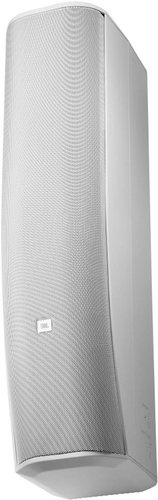

JBL CBT 70J-1
2000W Two-Way Line Array Column Speaker in White

OUR PART #:  CBT70J-1-WHITE

The JBL CBT 70J-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency...
Learn More
Our Price: $1,037.00
List Price: $1,296.67
Call for Special Sale Price!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL CBT 70J-1
Qty:
In Stock

Similar Products

The JBL CBT 70J-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. (shown with included grille removed)

JBL CBT 70J-1 Features:

  • Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent.
  • Components: Sixteen 25 mm (1") soft dome tweeters and four 125 mm (5") high-power LF drivers, arranged coaxially.
  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection of HF devices
  • Swivel (pan) / tilt wall bracket included.

JBL CBT 70J-1 Specifications:

  • Components:
    • Four 130 mm (5") LF drivers
    • Sixteen 25 mm (1") HF drivers
  • Frequency Range (-10 dB): 60 Hz – 20 kHz
  • Vertical Coverage (selectable via switch):
    • Narrow Mode: 25° (2 kHz - 16 kHz) (±10°)
    • Broad Mode: 45° (750 Hz - 16 kHz) (±10°)
  • Horizontal Coverage: 150° (500 Hz – 8 kHz, ±20°)
  • Sensitivity (2.83V@ 1m):
    • Narrow:
      • Speech Mode: 98 dB (1 kHz - 8kHz)
      • Music Mode: 93 dB (300 Hz - 18 kHz)
    • Broad:
      • Speech Mode: 96 dB (1 kHz - 8kHz)
      • Music Mode: 92 dB (300 Hz - 18 kHz)
  • Nominal Impedance: 8 ohms
  • Power Capacity:
    • 500 W (2000 W peak), 2 hrs
    • 350 W (1400 W peak), 100 hrs
  • Max SPL:
    • Narrow:
      • Speech Mode: 125 dB cont ave (131 peak)
      • Music Mode: 120 dB cont ave (126 peak)
    • Broad:
      • Speech Mode: 123 dB cont ave (129 peak)
      • Music Mode: 119 dB cont ave (125 peak)
  • Low Frequency Drivers: 4 pcs, 130 mm (5") drivers, dual magnet neodymium, 38 mm (1.5") voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
  • High Frequency Drivers: 16 pcs, 25 mm (1") drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
  • Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Outdoor Capability: IP-54 rated, per IEC529. UV, moisture and salt-spray resistant.
  • Insert Points: 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
  • Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points.  Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5" x 2.75") pattern for OmniMount® 60.0 and other compatible third-party brackets.  Threaded mounting points can be utilized for suspension.
  • Dimensions: 27.4" H x 6.7" W x 9.3" D (694 x 170 x 237 mm)
  • Net Weight: 21 lbs (9.5 kg)
  • Included Accessories: Swivel (pan) / tilt wall bracket
  • Optional Accessories:
    • MTC-PC2 terminal panel cover
    • MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy-duty speaker stand
    • MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
