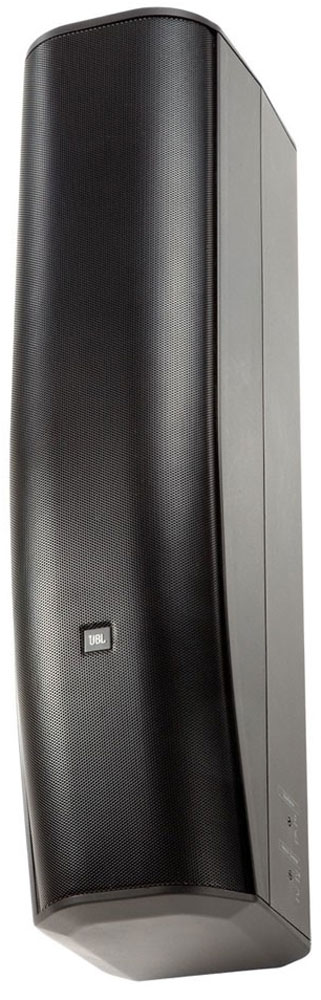

JBL CBT 70J-1
2000W Two-Way Line Array Column Speaker

OUR PART #:  CBT70J-1

The JBL CBT 70J-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency...
Learn More
Our Price: $1,037.00
List Price: $1,296.67
You save 20%!
Write the first review.
JBL CBT 70J-1
Qty:
In Stock

Related Products

The JBL CBT 70J-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. (shown with included grille removed)

JBL CBT 70J-1Features:

  • Asymmetrical vertical coverage sends more sound toward far area of room to make front-to-back sound levels more consistent.
  • Components: Sixteen 25 mm (1") soft dome tweeters and four 125 mm (5") high-power LF drivers, arranged coaxially.
  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
  • Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
  • Dynamic SonicGuard™ overload protection of HF devices
  • Swivel (pan) / tilt wall bracket included.

JBL CBT 70J-1 Specifications:

  • Components:
    • Four 130 mm (5") LF drivers
    • Sixteen 25 mm (1") HF drivers
  • Frequency Range (-10 dB): 60 Hz – 20 kHz
  • Vertical Coverage (selectable via switch):
    • Narrow Mode: 25° (2 kHz - 16 kHz) (±10°)
    • Broad Mode: 45° (750 Hz - 16 kHz) (±10°)
  • Horizontal Coverage: 150° (500 Hz – 8 kHz, ±20°)
  • Sensitivity (2.83V@ 1m):
    • Narrow:
      • Speech Mode: 98 dB (1 kHz - 8 kHz)
      • Music Mode: 93 dB (300 Hz - 18 kHz)
    • Broad:
      • Speech Mode: 96 dB (1 kHz - 8 kHz)
      • Music Mode: 92 dB (300 Hz - 18 kHz)
  • Nominal Impedance: 8 ohms
  • Power Capacity:
    • 500 W (2000 W peak), 2 hrs
    • 350 W (1400 W peak), 100 hrs
  • Max SPL:
    • Narrow:
      • Speech Mode: 125 dB contave (131 peak)
      • Music Mode: 120 dB cont ave (126 peak)
    • Broad:
      • Speech Mode: 123 dB cont ave (129 peak)
      • Music Mode: 119 dB cont ave (125 peak)
  • Low Frequency Drivers: 4 pcs, 130 mm (5") drivers, dual magnet neodymium, 38 mm (1.5") voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
  • High Frequency Drivers: 16 pcs, 25 mm (1") drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
  • Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Outdoor Capability: IP-54 rated, per IEC529. UV, moisture and salt-spray resistant.
  • Insert Points: 10x M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
  • Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points.  Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5" x 2.75")pattern for OmniMount® 60.0 and other compatible third-party brackets.  Threaded mounting points can be utilized for suspension.
  • Dimensions: 27.4" H x 6.7" W x 9.3" D (694 x 170 x 237 mm)
  • Net Weight: 21 lbs (9.5 kg)
  • Included Accessories: Swivel (pan) / tilt wall bracket
  • Optional Accessories:
    • MTC-PC2 terminal panel cover
    • MTC-CBT-SMB1 Stand-Mount Bracket for use with 35 mm heavy-duty speaker stand
    • MTC-CBT-FM2 flush-mount low-profile wall-mount bracket
