Product Overview

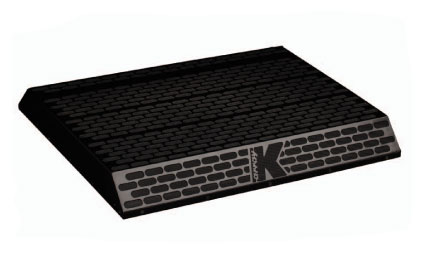

Along with its ultra-slim profile, substantial output capability and smooth frequency response over the full vocal range, the KJ50bv has the unique capability to switch-select the Horizontal coverage pattern and to vary the Vertical coverage through the DSP control.
The KJ50vb is specifically designed to work with the K-array KA7-7 four-channel power amplifier. The KA7-7 provides the discrete pre-set DSP control setting for speaker protection, equalization and the vertical beamwidth and steering capability.
Features:
- Selectable horizontol coverage
- Variable vertical coverage from external
- DSP control. +/- 15 degree focus area
- Multiple 2" long excursion full-range drives
- Smooth frequency response
- Electronically protected
- High dynamic range capability
- Top quality components for outstanding performance
- Ultra-thin frame for invisable installation
- Available in black or white
Specifications:
- Acoustics:
- Speakers power handling: 4 x 150W
- Max. power: 4 x 200W
- Impedance: 4 x 16 ohms (spot mode), 4 x 8 ohms (flood mode)
- Frequency range: 150Hz - 20kHz
- SPL 1W/1mt 98dB
- Max SPL: 124 dB continuous - 130 dB peak
- Coverage:
- Horizontal : selectable - Spot (10 degrees) / Flood (100 degrees)
- Vertical: DSP dependent 10 degrees narrow to 70 degrees wide, +/- variable focus in Narrow mode
- Crossover:
- Type: external crossover required
- Frequency: 150 Hz, 24 dB/oct suggested minimum
- Transducers:
- Full range: 36 x 2" neodymium magnet 0.75" VC long-excursion speakers
- Audio Input:
- Connectors: 1 x 8-pin Speakon NL8 input
- Connectors: 1 x 8-pin Speakon NL8 Thru
- Wiring: (1+ 1-) = CH.1 (Near field) (2+ 2-) = CH.2 (Mid-near field)
- (3+3-) = CH.3 (Mid-far field) (4+ 4-) = CH.4 (Far field)
- Selection Switch:
- Coverage: 4 x switches for spot-flood coverage selection
- Physical:
- Dimensions: 50.3 x 43.3 x 6.1 cm (19.80” x 17.05” x 2.40”)
