Sanken COS-11D-HWM-TA4
Dual-Ear Head Worn Lavalier Microphone with TA4 Connector

OUR PART #  COS-11D-HWM-TA4

Call for info!

Select model: (shipping times are approximate)

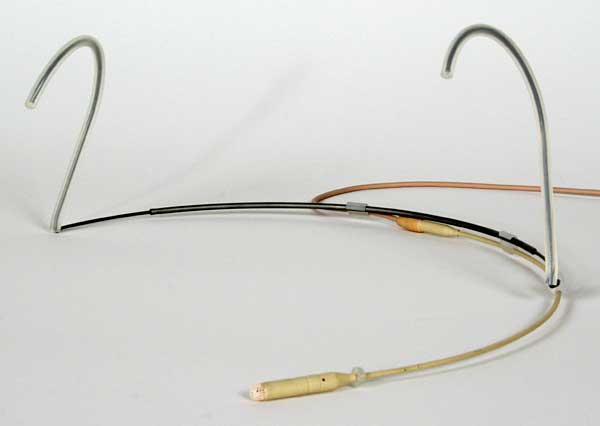

The COS-11D-HWM-TA4 is a headworn dual-ear microphone with a TA4 connector custom wired depending on the transmitter specifications that is being used.

Note: These items are custom wired in most cases. In order to place an order for this item, we will need to know what transmitters are being used. Please contact your sales representative for more information on this and other products.

FEATURES

  • Same capsule as COS-11D
  • Very stable dual-ear design
  • Two colors: Beige and Cocoa
  • Microphone position can be positioned on either theleft or right side
  • Stainless, rust-resistant

SPECIFICATIONS

  • Directivity: OMNI
  • Transducer: Self-polarized condenser
  • Frequency Range: 50Hz - 20kHz
  • Sensitivity (nominal at 1kHz): 7.1mV/Pa
  • Equivalent Noise Level (A-Weighted): 28dB-A
  • Max SPL (1%THD): 136dB SPL
  • Powering: +2.5V,  +12V
  • Current Consumption: 0.3mA
  • Weight: 8g (without cable), 19g (with cable)
  • Dimensions: Cable length: 1.8m



Sanken COS-11D-HWM-TA4
Dual-Ear Head Worn Lavalier Microphone with TA4 Connector

OUR PART #  COS-11D-HWM-TA4

Product Information:

The COS-11D-HWM-TA4 is a headworn dual-ear microphone with a TA4 connector custom wired depending on the transmitter specifications that is being used.

Note: These items are custom wired in most cases. In order to place an order for this item, we will need to know what transmitters are being used. Please contact your sales representative for more information on this and other products.

FEATURES

  • Same capsule as COS-11D
  • Very stable dual-ear design
  • Two colors: Beige and Cocoa
  • Microphone position can be positioned on either theleft or right side
  • Stainless, rust-resistant

SPECIFICATIONS

  • Directivity: OMNI
  • Transducer: Self-polarized condenser
  • Frequency Range: 50Hz - 20kHz
  • Sensitivity (nominal at 1kHz): 7.1mV/Pa
  • Equivalent Noise Level (A-Weighted): 28dB-A
  • Max SPL (1%THD): 136dB SPL
  • Powering: +2.5V,  +12V
  • Current Consumption: 0.3mA
  • Weight: 8g (without cable), 19g (with cable)
  • Dimensions: Cable length: 1.8m
