Grace Design SB-66
Spacebar 66cm Stereo Microphone Positioning System

OUR PART #:  SB66

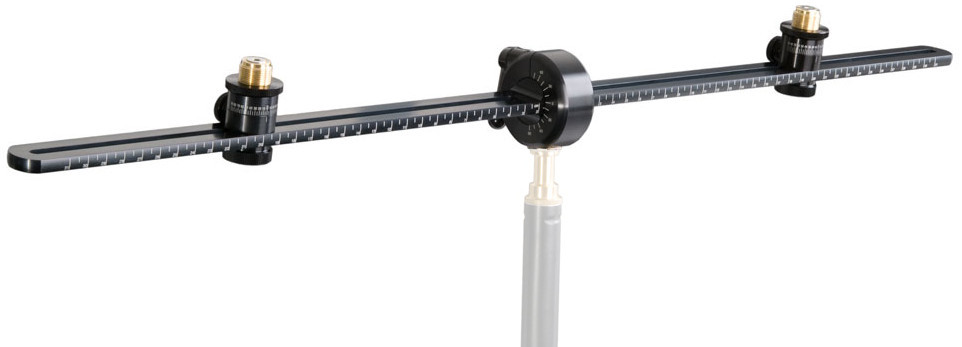

The Grace Design SB-66 Spacebar microphone positioner allows for precise and repeatable setting of microphone capsule spacing, angle of incidence, and rotation around the x axis.
Learn More
Our Price: $395.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Grace Design SB-66
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Grace Design SB-66 Spacebar microphone positioner allows for precise and repeatable setting of microphone capsule spacing, angle of incidence, and rotation around the x axis. With precision scales for angle and distance engraved on the Spacebar components, it becomes easy to make perfectly measured and repeatable stereo microphone setups.

As well as being able to precisely set microphones in standard stereo configurations (i.e. XY, ORTF, NOS, and AB 50cm), the Spacebar allows for exact settings through the entire continuum of angle and spacing. This allows the user to adjust the stereo microphone array and tailor the pickup field to suit virtually any recording environment.

Grace Deisign highly recommends The Stereophonic Zoom by Michael Williams, a technical paper that provides detailed information on the relationship between angle of incidence, capsule spacing, and the effective angle of the recorded sound field. It is a very useful reference that can greatly increase the flexibility of your stereo microphone techniques. Please see the "Documentation" tab for this techincal paper.

The Spacebar system is precision fabricated from machined aircraft aluminum, brass, and stainless steel. Each system consists of a center stand clamp, horizontal bar, and microphone holders. The SB-66 is supplied with two microphone holder assemblies and an additional tall microphone holder. The taller microphone holder body can be used to raise one microphone to avoid interference if the mic spacing requires that the microphone bodies overlap.

The Spacebar system is precision fabricated from machined aircraft aluminum, brass, and stainless steel. If properly cared for, it will last a lifetime. Comes with Grace Design's transferrable EON Limited 20 Year Warranty!

Minimum Spacing: 2.75" (7 cm)

Maximum Spacing: 24" (61 cm)

Includes:

  • 66cm bar
  • Clamp
  • 2x SB-MHS standard microphone holders
  • 1x SB-MHT tall microphone holder
  • Mic stand shown in picture above is not included
