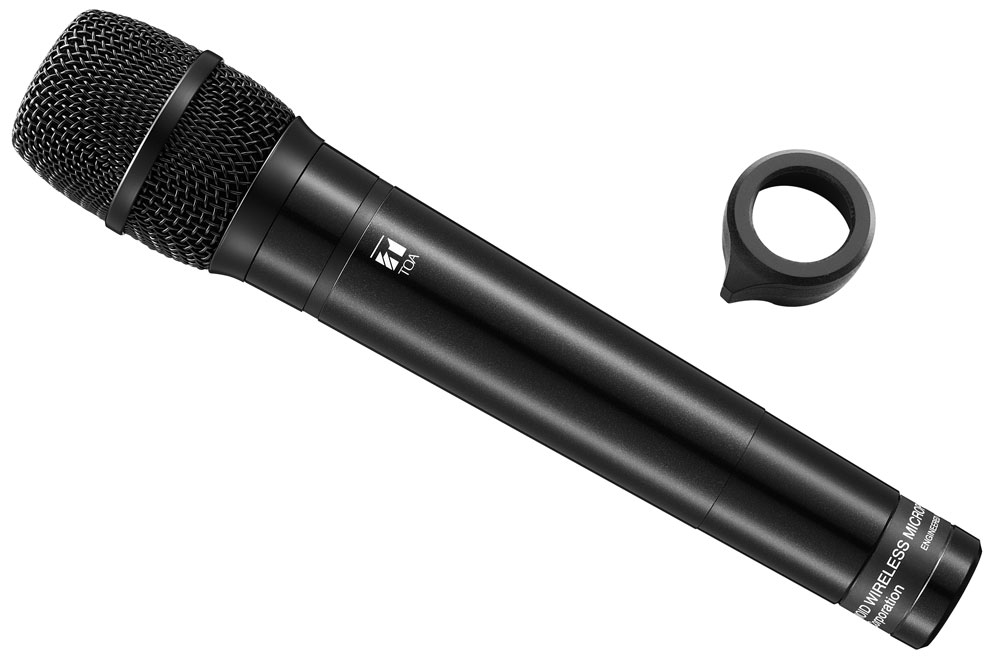

TOA WM-5270 E01 64-Channel Cardioid Dynamic Wireless Handheld Microphone Transmitter

The WM-5270 Wireless Microphone employs a dynamic microphone capsule with high input handling capacity and is suitable for vocal application and other professional uses. Thanks to the PLL-synthesizer system, 16 different operating frequencies (4 banks) are made available. A high output power ensures stable radio signal transmission. The maximum input sound pressure can be set in the range of 130dB SPL to 142dB SPL by a PAD switch, permitting adaptation to a wide range of input sound pressure.

Features:

• Dynamic microphone unit:
• Unidirectional
• 64 selectable channels
• Maximum input level: 142dB SPL
• Rolling stopper prevents the microphone from rolling.
• Single AA battery operation for more compact and light weight body
• Built-in antenna

Specifications:

• Microphone Element: Dynamic microphone unit: Cardioid
• Modulation: Frequency Modulation
• Frequency Range: 636 - 865MHz, UHF
• Channel Selectable: 64 channels (the number of channels may differ from country to country)
• RF Carrier Power: 50mW or less
• Tone Frequency: 32.768kHz
• Oscillator: PLL Synthesized
• Maximum Input Level: 142dB SPL
• Maximum Deviation: +/- 40kHz
• Audio Frequency Response: 80Hz - 15kHz
• Dynamic Range (AF Circuit): 95dB or more (with WT-5800)
• Battery: LR6 (AA)
• Battery Life: 10 hours or more (alkaline)
• Indicator: Battery Life
• Indicator: Power / Battery lamps
• Antenna: Built-in type
• Operating Temperature: 14°F to 122°F
• Finish: Dark Gray
• Dimensions: 1.89" x 9.61"
• Weight: 340g
