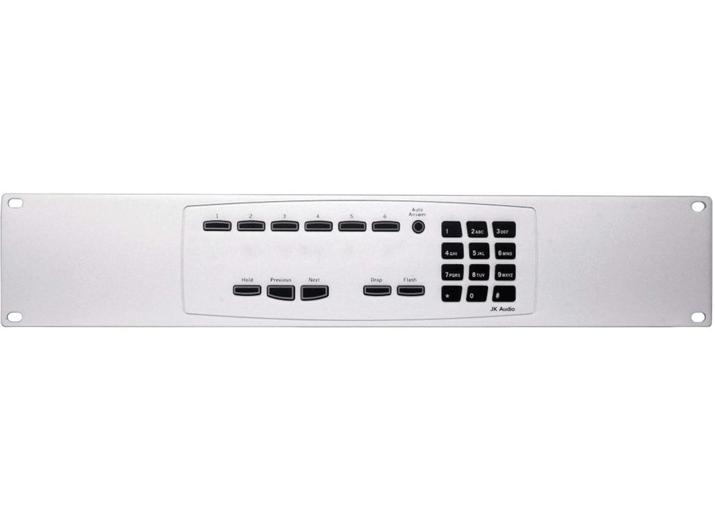

JK Audio GM1x6R Guest Module Rack Mount Remote Keypad, 1x6

JK Audio introduces a modular family of talk show system components. Each system requires at least one Concierge™ switch core, at least one Innkeeper 1rx or one Innkeeper 2 digital hybrid, and at least one Guest Module control surface. Up to eight Guest Module control surfaces can be added to provide remote control of the switch matrix over CAT5 cable. Guest Modules are available in GM1x6, GM2x6, and GM1x12 desktop and rack mount versions. The smallest system consists of one Concierge switch core, one innkeeper 1rx, and one Guest Module GM1x6 control surface.

The single most important function of a talk show system is getting excellent caller audio on the air. While there are many ways to reach that goal, it is important to look at all of the attributes of a talk show system, making sure that everyone at the station has the ability to get that caller on the air. From selection and purchase, to installation and training, every step can be made easier with the right equipment.

Up to eight Guest Module control surfaces can be added to provide remote control of the switch matrix over CAT5 cable. Guest Modules are hot swappable without losing calls, and feature line selection buttons that change color to indicate call status. Guest Modules are available in GM1x6, GM2x6, and GM1x12 desktop and rack mount versions. They feature durable aluminum and steel construction with a sealed silicone rubber keypad.

The “Hot-Swappable” capability is not a repair feature. On the contrary, Guest Modules are expected to function for years without fail. The hot-swappable feature speaks more about the architecture of the system. Call control resides in the Concierge switch, allowing Guest Modules to be added and removed without losing calls. This design allows you to simply add or move Guest Modules during a show. Go ahead, add a second control surface for a guest during the morning show, or move an extra controller into the news studio during elections. The user interface is quite simple, with only a few visual indicators to remember. You will immediately recognize the similarities to legacy PBX systems:

Ringing=Flashing white;

Hold=Wink blue;

Talking=Solid white;

In Use=Solid red;

From here context sensitive call control is added, lighting function buttons only when they are available options. There are no special key combinations to remember. No “double press” or special sequences to learn. The control surface will guide you through, presenting options as they become available.

Two special buttons are Previous and Next, which light only when they are available options. Previous takes you to the last person that you were talking to (provided they are still on hold). Next takes you to the oldest call in the queue.

Specifications:

• Size: 19" x 3.5" x 1.2" (48 x 9 x 3 cm)
• Weight: 1.75 lbs (0.8 kg)
