Ace Backstage Co. 102DDBBX
Double Deep Back Box, 10" x 10" x 12"


Our Price: $130.22
List Price: $166.09
You save 22%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Ace Backstage Co. 102DDBBX
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

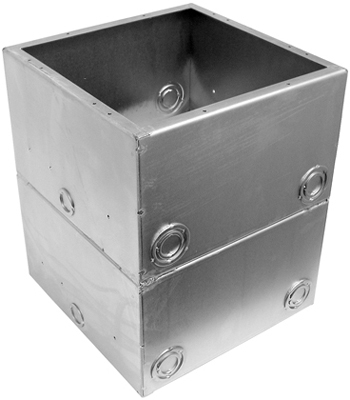

The Ace Backstage 102DDBBX Double Deep Back Box is twice as deep (12”) as Standard #BBX Series Back Boxes (6”) and may be used exclusively with Ace's Full and Double Wide Stage Pockets. The 102DDBBX is constructed of welded 14 gauge steel with a protective cover that is discarded when the pocket body is installed. The box and cover have a clear zinc corrosion resistant finish. A 1/2” mounting flange is predrilled to mate with the pocket body flange. The pocket body assembly is 4.5” deep and the back box is 12” deep providing an extra-large 7.5” work clearance in the bottom of the back box which is ideal for feed thru or distribution junction.

The clearance volume (volume between bottom of pocket body and bottom of the double deep back box) is 722 cubic inches in the 102DDBBX . Ace Double Deep Back Boxes come with standard Electrical Conduit Combination 1/2”, 3/4”, 1”, and 1-1/4” Knock Outs, 4 places typical on opposing sides and Electrical Conduit Combination 1/2” and 3/4” Knock Outs, 2 places typical on opposing sides.
