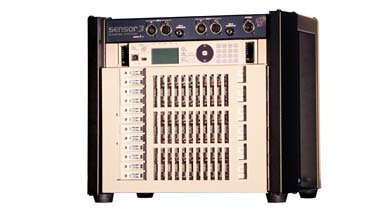

ETC/Elec Theatre Controls SP3-1220B
Sensor3 Portable Pack, 12 x 20A with Stage Pin Connectors

OUR PART #:  SP3-1220B

World-class dimming performance...
Learn More

Call for price! Not available online.
List Price: $5,660.00

Similar Products

World-class dimming performance, industrial-strength construction and an array of connection options make Sensor®3 Portable Packs the professional choice for smaller touring shows, industrial rentals, compact video productions, and rehearsal spaces.

Sensor3 Portable Packs deliver built-in dimming features that many installation racks would envy: modular design and magnetic circuit breakers. Add to that optional Advanced Features communication and remote monitoring options. Choose the control protocol you need: DMX, or Net3/ACN. Attach your load outputs to any industry-standard connector type. And quit worrying about the pounding that mobile productions dish out. Sensor3 Portable Packs are built to take it.

ETC SP3-1220B Sensor3 Portable Pack Features:

  • Available in six- and 12-dimmer module configurations
  • Direct Ethernet-controls signal input, and two DMX inputs
  • Cam-Lok input connectors
  • Pass through connectors available for SP3-6 and SP3-12
  • Multi-pin output configurations include Veam® VSC, Pyle National® andSocapex®
  • Optional castered cart available
  • CEM3 Control Electronics Module
  • Supports Advanced Features option
  • Supports Dimmer Doubling™

ETC SP3-1220B Sensor3 Portable Pack Specifications:

GENERAL
• Two sizes of pack available:
  -  Small - 6 modules, 12 dimmers maximum
  -  Large - 12 modules, 24 dimmers maximum
• Underwriters Laboratories cUL Marked, tested and Listed to the following standards:
  -  UL508 (File: E152039)
• Complies with ESTA DMX512-A Standard
• Ambient temperature: 0-40°C / 32-104°F
• Relative humidity: 10-90% non-condensing

MECHANICAL
• Rugged aluminum construction
• Fine-textured, scratch-resistant, gray and black epoxy paint
• No tools required for module removal or installation
• Keyed module slots prevent insertion of inappropriate module types

THERMAL
• High efficiency cooling system with airflow sensor
• Easily cleaned electrostatic air filter
• Low-noise fan for quiet operation
• Ambient temperature: 0-40°C / 32-104°F

ELECTRICAL
• Easily switches from single–phase 120/240 VAC to three-phase 120/208 VAC operation
• Cam-Lok power input connectors
• Cam-Lok pass thru connectors available
• Max Pass-through buss rating for
  -  SP3-6: 100A
  -  SP3-12: 200A
• Line feed voltage range is 91-139 VAC*
• Power frequencies from 47-53; 57-63Hz
• Choice of Stage pin, Edison or Twist-Lock® or 19-pin multi-pin output connectors

ELECTRONICS
• CEM3 Power Control
• Full number pad for fast access to dimmer override and setup
• Graphical backlit display
• Standard diagnostic reporting

OPTIONS
• Advanced Features dimmer-specific output reporting - requires Advanced Features (AF) dimmer modules
• Custom output panels (call ETC for details)
• Cam-Lok™ pass-through panel
• Castered Cart

Cam-Lok Pass Thru Panel for Sensor Portable Packs
ETC/Elec Theatre Controls 7052A2024 Cam-Lok Pass Thru Panel for Sensor Portable Packs
This accesorry is the Cam-Lok Pass Thru Panel which when attached to the bottom of your Sensor Portable Pack adds 3" in height to your portable pack to allow Cam-Lok cables and connectors to be used. NOTE: Standard Cam-Lok configuration is ...
