Product Overview
Sound that makes performances and audiences truly come alive doesn’t come easy, but the CFX Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.
Renkus-Heinz CFX151-8 Features:
- Compact Design: Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design
- Exclusive 90° by 40° Complex Conic Design: Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces
- 2-inch Extended Range Titanium HF Driver: Provides smooth, low distortion high frequency performance to 18 kHz and beyond
- Heavy-Duty 15-inch Woofer: Easily handles 700 Watts of program power
- Built-in Crossover: Includes EQ and high frequency protection; in theCFX151 eliminates need for a separate electronic crossover and bi-amplification
Renkus-Heinz CFX151-8 Specifications:
- Sensitivity: 100 dB (1W/1m)
- Max SPL: 131 dB Peak
- Dispersion: 90° H x 40° V
- Freq. Response: 60 Hz to 18 kHz, ± 3 dB
- HF Driver: 2" SSD203-8F driver, 40 W RMS, 80 W Pgm
- LF Driver: 15" model SSL15-19, 350 W RMS / 700 W Pgm @ 8 Ohms
- Enclosure: Hardwood, perforated metal grille
- Finish:
- Black or White paint
- Custom color optional
- Weather Resistant treatment optional
- Connectors: Screw terminals & looping Neutrik 4-pin SpeakOn style connectors
- Hardware:
- 6-point Universal Mounting Hardware (Metric M10 threads)
- U-bracket attachment points
- 35 mm (1 3/8”) tripod socket
- Omnimount attachment plate optional
- Dimensions: 29 3/8" H x 19" W x 16 7/8" D (74.6 cm x 48.3 cm x 42.8 cm)
- Net Weight: 70.2 lbs. (31.8 kg)
Note:

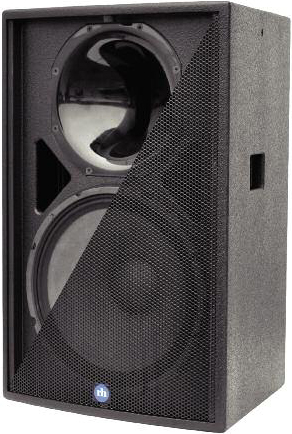

Image shown above is for illustrative purposes only; actual product comes in White.
