Leprecon 90-08-0700
LDMX-4 OPTO Isolator, 1 In 4 Out Splitter, 5-Pin DMX

OUR PART #:  90-08-0700

The LDMX ensures optically safe DMX line splitting and isolation of DMX-512. These handy DMX control tools can be rack mounted or used as a stand alone device.
Learn More
Our Price: $895.00
List Price: $1,052.86
You save 15%!
Write the first review.
Leprecon 90-08-0700
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The LDMX ensures optically safe DMX line splitting and isolation of DMX-512. These handy DMX control tools can be rack mounted or used as a stand alone device. Accepts a DMX control signal from the console and provides 2500 volt isolation between the control input and additional DMX feeds for dimmer packs and racks, moving lights, color scrollers or foggers.

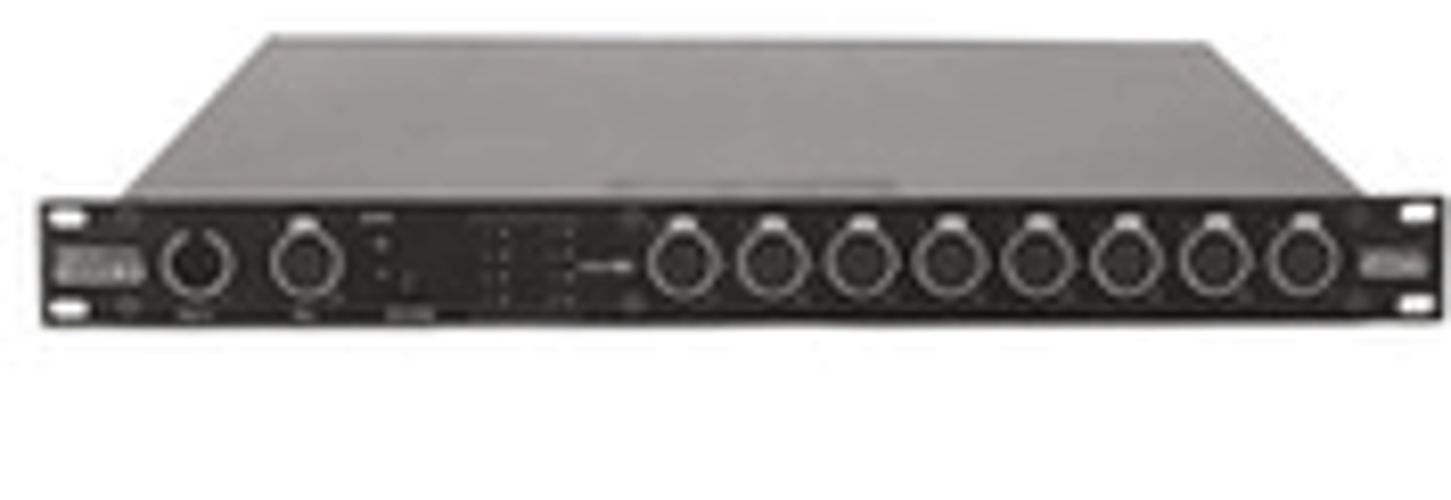

NOTE: Product shown in image is the 8 Out model and is for illustrative purposes only. Not representative of actual product.

Leprecon LDMX-4 OPTO Specifications:

  • Control Input: Male 5-pin XLR DMX
  • Pass Thru: Female 5-pin XLR DMX Unbuffered Pass Thru
  • Isolated Outputs LDMX-4 1 x 4: Provides four isolatedoutputs
  • DMX Termination: Switch provides termination of theDMX data link
  • LED Indication: Power Indicator Valid DMX LEDindication for isolated outputs
  • Power Input: IEC flush mounted male, power cordincluded. External switch for 110/220 volt operation
  • Overcurrent Protection: Miniature fuse, 5 x 20mm 2 amp. Inlet contains a spare fuse.
  • Dimensions (HxWxD): Standard E.I.A. rack mountable.
    • 1.75” x 19” x 7”
  • Weight: 8.75 lbs.
