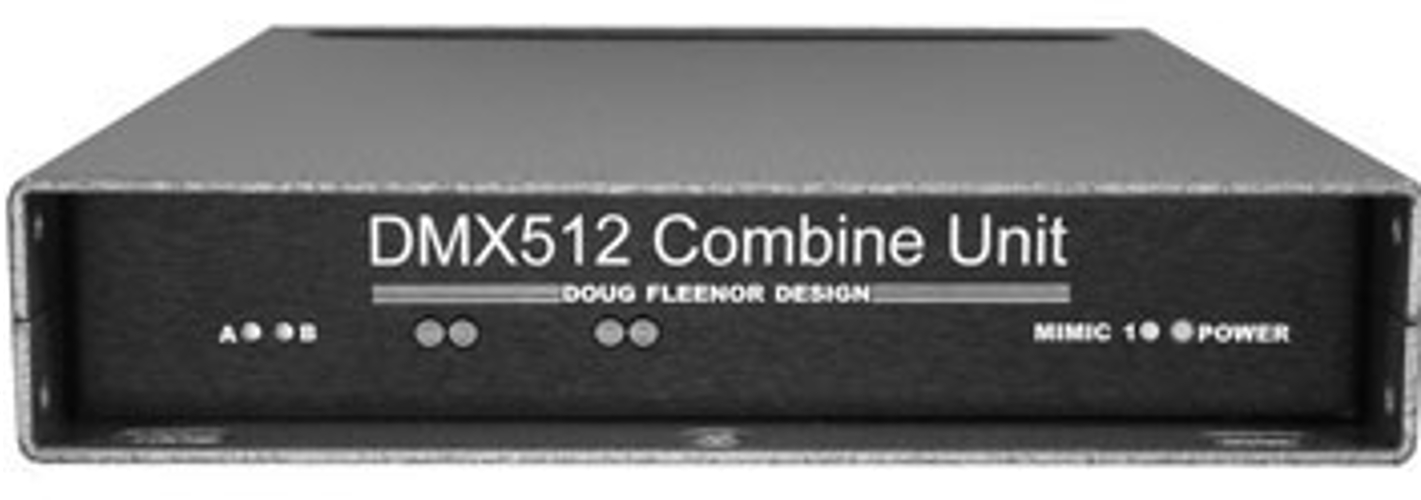

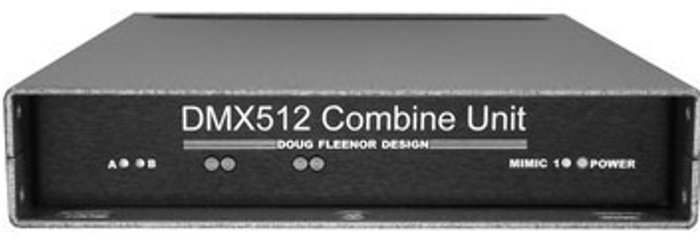

Doug Fleenor Designs 221E
DMX Merger, 2 In 1 Out, Isolated

OUR PART #:  221E

The DMX512 Combine unit solves the problem of combining multiple DMX input signals into a single DMX output signal.
Learn More
Selected Model Price: $1,154.25
List Price: $1,425.00
Save up to 19%!
Write the first review.
Doug Fleenor Designs 221E
Select a Model: (shipping times are approximate)

Related Products

The DMX512 Combine unit solves the problem of combining multiple DMX input signals into a single DMX output signal. The most common configuration of the unit allows two consoles to control a single set of dimmers in a highest takes precedence or pile on mode. Examples of where this might be necessary include booth console/stage manager's console, primary console/backup console, and where one console controls intensity of a moving light fixture while a second console is used for color and/or position.

Units with up to six inputs are available. More than six inputs can be accommodated using a Master/Slave arrangement. Units that patch and/or route the DMX dimmer channels are available for applications where two consoles control a single dimmer rack with loads in separate rooms. Such units prevent the operator in room "A" from bringing up the lights in room "B".

Doug Fleenor Designs 221E Specifcations:

  • Baud rate: 250 Kilo baud
  • Input circuit: EIA-485 receiver with 120 ohmtermination between +data and -data
  • Input connectors: Gold plated 5 pin male (Neutrik D1series) Terminal Block Optional
  • Output circuit: EIA-485 driver
  • Output connector: Gold plated 5 pin female (NeutrikD1 series) Terminal Block Optional
  • Input to output delay: 1/100 second average 1/50second maximum
  • Power input: 100 - 120 volts, 50/60 hertz, 12 watts(208 - 240 volt optional)
  • Power cord: Attached 5' 18/3 cord with parallel bladewith ground plug.
  • Color: Silver hammertone with black front and backpanels.
  • Size (DxHxW): 11.25", 1.74", 8.25"
  • Weight:: 4.9 pounds

NOTE: All specifications meet or exceed DMX512 requirements

Doug Fleenor Designs RK8-1  Rack Kit
Doug Fleenor Designs RK8-1 Rack Kit
This unit is an 8" wide 1U rack kit, allowing you to mount equipment in a standard rack.
