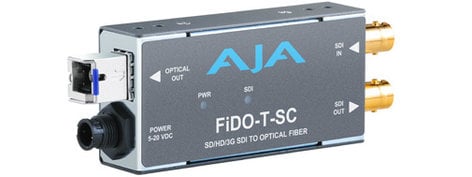

AJA Video Systems Inc FiDO-T-SC
1 Channel SDI to SC Fiber Mini Converter with Looping SDI Out and Power Supply

OUR PART #:  FIDO-T-SC

The AJA FiDO-T-SC 1-channel SDI to SC Optical Fiber mini converter allows for the transport of SDI, HD-SDI...
Learn More
Our Price: $445.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc FiDO-T-SC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA FiDO-T-SC 1-channel SDI to SC Optical Fiber mini converter allows for the transport of SDI, HD-SDI, and 3G SDI over distances up to 10km using standard single-mode fiber optic cable on SC connectors. The FiDO-T-SC converter meets all relevant SMPTE specifications and is rugged, versatile, and suitable for indoor or outdoor use.

The FiDO-T-SC offers unmatched flexibility and electrical isolation useful for eliminating ground loop problems.

AJA FiDO-T-SC 1 Channel SDI to SC Fiber Mini Converter Specifications:

  • Formats: 3Gb, 1.5Gb, 270Mb, Auto Select
  • Video Inputs and Outputs:
    • SDI (SMPTE 259/292/296/424), 2x BNC
    • 1x Single mode optical fiber, SC connector
  • Cable Equalization (BNC inputs, 1694 coax)
    • 270mb, 400m
    • 1.5Gb, 200m
    • 3Gb, 140m
  • Input/Output Return Loss (BNC): >15db, 270Mb - 3Gb
  • Optical Outputs:
    • Wavelength: 13 10 nm
    • Output Power: -2dBm typical
  • Dimensions: 4.6" x 1.71 " x 0.85" (117 x 43.5 x 21.6 mm)
  • Power:
    • +5-20 VDC
    • 1.5 watts
