Grass Valley ADVC-G3
2X SDI to HDMI Converter/Multiplexer with 3D Support

OUR PART #:  ADVC-G3

The ADVC G3 is a full-featured HD/SD-SDI to HDMI converter with 3G technology and the latest HDMI 1.4a connection support...
Learn More
Our Price: $937.50
List Price: $999.00
You save 6%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Grass Valley ADVC-G3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The ADVC G3 is a full-featured HD/SD-SDI to HDMI converter with 3G technology and the latest HDMI 1.4a connection support, designed to fulfill the demands of 3D monitoring and multiplexing.

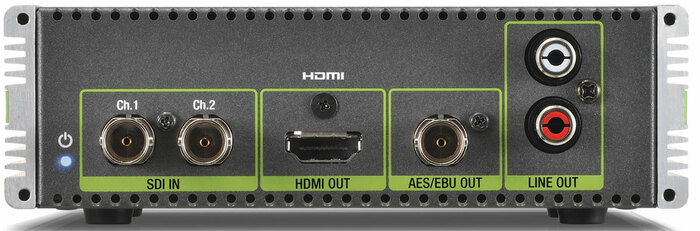

The ADVC G3 can be used as a standard HD/SD-SDI to HDMI converter, but also features a second SDI input which can be used for left-eye/right-eye inputs. The ADVC G3 will, in real time, multiplex the two left-eye/right-eye signals for a 3D output through HDMI.

The analog audio and AES/EBU outputs, used for audio de-embedding, are a welcome feature in monitoring situations, for both 2D and 3D content.

The ADVC G3 features 3D multiplexing technology supported by HDMI1.4a (Side-by-Side, Top-and-Bottom, and Frame Packing—sequential), which can be turned on and off manually.

Specifications:

Inputs: (3G) HD/SD-SDI x 2

Input Formats:

  • 1080i60/59.94/50
  • 1080p60/59.94/50/30/29.97/25/24/23.98
  • 1080psf/24/23.98
  • 1035i60/59.94
  • 720p60/59.94/50/30/29.97/25/24/23.98
  • 486i59.94
  • 576i50

Outputs: HDMI, AES/EBU, analog audio

Output Formats:

  • 1080i60/59.94
  • 1080p60/59.94/50/30/29.97/25/24/
  • 23.98
  • 720p60/59.94/50/30/29.97/25/24/23.98
  • 480i/p 59.94
  • 576i/p50

Dimensions: 142.5 x 42.5 x 98.5mm
